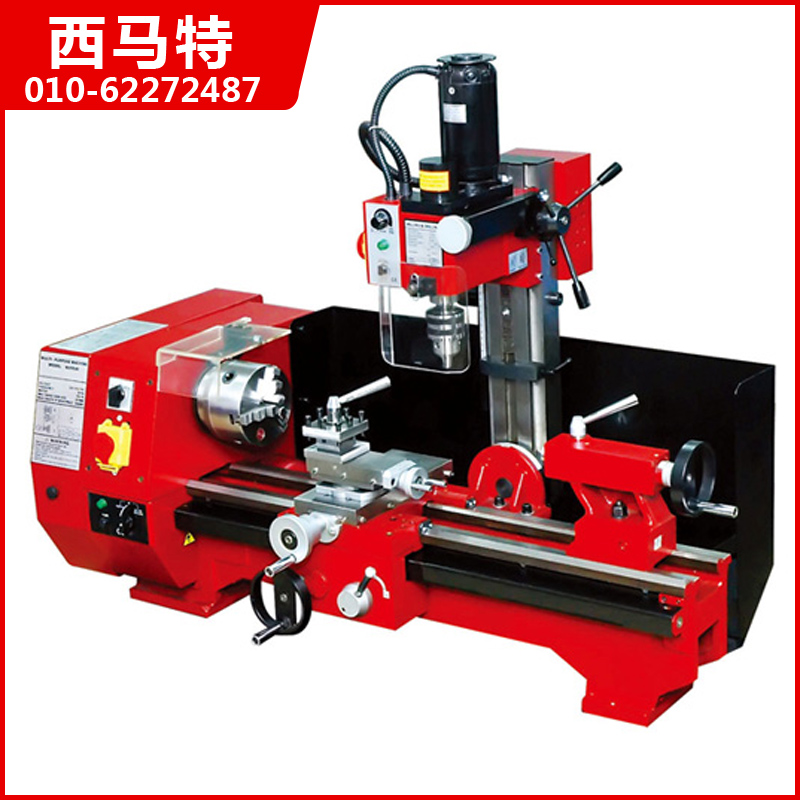

多功能机床  型号:M6-550

产品特点:

超音频淬火床身  强功率电机  欧洲标准安全磁性开关
  紧急拍停开关、全套变速齿轮、高精确度。基于高精密的产品技术,使用众多的附件可进行多方面的工
作。
M2(M6)多功能机
•用于切削,钻孔和铣削;
•车床皮带调速,安全的体现;
•钻系部位电子可变主轴转速;
•低噪音的运转,安全防溅罩;
•公制和英制螺纹切削;
•全套配件;
•转换为一个多用途的机器与铣削附件。




技术参数
车削
●床身上工件最大回转直径                                            250毫米
●最大工件长度                                                            550毫米
●主轴通孔直径                                                             20毫米
●主轴孔锥度                                                                  莫氏3号
●尾轴孔锥度                                                                  莫氏2号
●主轴跳动精度                                                                    0.02毫米
●主轴转速范围(6级)                                        125-2000转/分±10%
●拖板横向行程                                                          110毫米
●拖板纵向行程                                                            75毫米
●螺纹加工范围                                  公制:0.4-3.0毫米(12种螺距)
                                       英制:10-44牙/英寸(8种螺距)
●输出功率                                                                            550瓦
●车床外型尺寸(长*宽*高)                                        1050*680*450毫米

钻孔与铣削
●最大钻孔能力                                                                     13毫米
●最大端面铣能力                                                                  16毫米
●最大表面铣能力                                                                  30毫米
●主轴箱行程(Z)                                                                   180毫米
●主轴中心线到立柱表面距离                                                170毫米
●立柱可倾斜角度                                                             左右各25度
●主轴端面到工作台的最大距离                                               245毫米
●主轴孔锥度                                                                         莫氏3号
●主轴转速(无级调速)                                  高速 100-2500转/分±10%
                                                                低速 100-1100转/分±10%
●输出功率                                                                           350瓦
●整机净重/毛重                                                             157/207公斤
●整机外型(长*宽*高)                                              1050*680*860毫米
●包装尺寸(长*宽*高)                                              1200*680*610毫米
                                                                               810*420*500毫米

随机附件
125毫米三爪卡盘  13毫米钻夹头  莫氏2号和莫氏3号呆顶尖  铣工作台  交换齿轮套件  扳手套件

可选附件:
编号
Serial No.
项目说明
Item Description
适合车型
Suitable for Models
S/N:10239
车床底座
Stand for Model 550

C6,C6B,M6
S/N:10018
车床底座
Stand for Model 550
Overall demension: 1060*440*850mm

C6,C6B,SC6,M6
S/N:10019
中心架
Steady rest

C6,C6B,SC6,M6
S/N:10020
跟刀架
Follow rest

C6,SC6,C6B,M6
S/N:10022
车刀
Cutter 11 pieces set

DIN 4971R Straight cutter

DIN 4972R Angle cutter

DIN 4973R Bore cutter

DIN 4974R Bore cutter

DIN 4975 Tip cutter

DIN 4976 Wide edge cutter

DIN 4977R Right external turning cutter

DIN 4978R External turning cutter

DIN 4980L Left angle cutter

DIN 4980R Right angle cutter

DIN 4981R Cutter



C4A,C4B,SC4,C6,

C6B,SC6,SM4,M6

S/N:10023
花盘
Face plate ¢220mm

C6,C6B,SC6,M6
S/N:10023A
花盘螺丝组件
Clamping kit for face plate

C6,SC6,C6B,C8,M6,M8
S/N:10024
活顶尖
Rolling center MT#2


C6,SC6,C4A,SC4,

C6B,C8,SM4,M6,M8

S/N:10025
4爪卡盘
4-jaw chuck ¢125mm

C6,C6B,SC6,SX4
S/N:10025A
4爪卡盘
4-jaw chuck ¢125mm with flange

C6,SC6,C6B,M6
S/N:10026
快换刀架
Quick change cutter rest

C6,SC6,C6B,M6
S/N:10027
钻夹头和锥柄
Tailstock chuck
Dia.13mm+MT#2

C4A,C4B,SC4,C6,C6B,

SC6,C8,SM4,M6,M8

S/N:10060
垂直托板
Vertical slider
Slot size 50mm

C6B,C6,SC6
S/N:10063
木工附件和中心顶尖
Wood toolrest with center

C6B,C6,SC6
S/N:10131
磨削附件
Grinding attachment
Spindle speed  0-6000±10%rpm
Wheel size  80*20*10mm
Motor output power  250W
Net/Gross weight   4/5kg

C6,SC6,C6B,M6
 S/N:10131-1 砂轮片
 Wheel replacement

C6,SC6,C6B,M6
S/N:10149
弹性夹头组件
Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm

M6,C6B,C6,SC6
S/N:10149A
弹性夹头组件
Mill chuck set(Imperial)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm

M6,C6B,C6,SC6

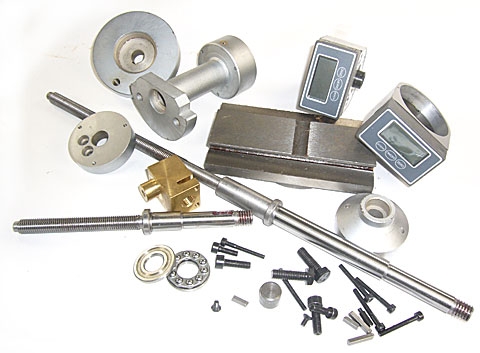

S/N:10151
数显组件
DRCD kit

C6,SC6,C6B,M6
S/N:10198
车刀
Lux cutter set with box 10x10 mm

DIN 4971R Straight cutter

DIN 4972R Angle cutter

DIN 4973R Bore cutter

DIN 4974R Bore cutter

DIN 4975 Tip cutter

DIN 4976 Wide edge cutter

DIN 4977R Right external turning cutter

DIN 4978R External turning cutter

DIN 4980L Left angle cutter

DIN 4980R Right angle cutter

DIN 4981R Cutter


C4A,C4B,SC4,C6,C6B,SC6
S/N:10201
组合车刀
Cutting set 10mm(Tin Coated)

DIN 4977R Right external turning cutter

DIN 4980L left cutter

DIN 4980R Right cutter

DIN 4975R Thread cutter

DIN 4981R Cutter


C4A,C4B,SC4,C6,C6B,SC6

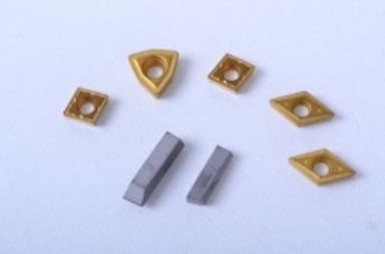

S/N:10201-1
可换刀头
Tip replacement

C4A,C4B,SC4,C6,C6B,SC6
Serial No.
Item Description
Suitable for Models
S/N:10036
快速平口钳
Quick vice100mm


U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M6

S/N:10037
弹性铣夹头
MT3 Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,SX4,M6

S/N:10038

S/N:10039

S/N:10040

S/N:10041

S/N:10042

S/N:10043

S/N:10044

S/N:10045

键槽铣刀
2 Flute Hss end mill ¢4mm

2 Flute Hss end mill ¢6mm

2 Flute Hss end mill ¢8mm

2 Flute Hss end mill ¢10mm

2 Flute Hss end mill ¢12mm

2 Flute Hss end mill ¢14mm

2 Flute Hss end mill ¢16mm

¢4-16 mm

X1,SX1,X2,X2L,

SX2,SX2L,X2P,XN2

S/N:10056
钻头套钻
Drill bit 1-13 mm 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10057
钻头套钻
Drill bit Tin coated 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10058
钻头套钻
Drill bit 1-10 mm 19 pcs


X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10059
钻头套钻
Drill bit Tin coated 19 pcs


X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10065

S/N:10066



4刃高速钢铣刀
4 Flute HSS end mill (metric 7 pcs)

4 Flute HSS end mill (metric 6pcs)

X1,SX1,X2,X2L,SX2,

SX2L,X3,X3L,SX3,SX3L

S/N:10102

S/N:10103

4刃高速钢铣刀
4 Flute HSS end mill (imperial 6 pcs)

4 Flute HSS end mill (imperial 8 pcs)

X1,SX1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10094
回转工作台/分度头(立卧2用)Rotary table 100mm


U1,SU1,SX0,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-1
分度片组件
Dividing plate for S/N:10094


U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-2
分度头尾座
Tailstock for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10109
可转位快速平口钳
Vice width 80mm


X2,X2L,SX2,SX2L,X2P,

X2P,X3,X3L,SX3,SX3L

S/N:10119

S/N:10120

S/N:10121

S/N:10122

S/N:10123

S/N:10124

S/N:10125

S/N:10126

夹头
Collet MT3 ¢4mm

Collet MT3 ¢6mm

Collet MT3 ¢8mm

Collet MT3 ¢10mm

Collet MT3 ¢12mm

Collet MT3 ¢14mm

Collet MT3 ¢16mm

Collet MT3 ¢4-16mm


X2,X2L,SX2,SX2L,X2P
S/N:10127
锯片接杆
Stub milling machine arbor for
For slitting saw hole ¢16mm


X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10128
镗刀
Boring arbor with boring cutter
MT#3


X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10129
锯片接杆
Stub milling machine arbor for For slitting saw, hole ¢16mm


X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L
