迷你钻铣床X2L

特点:
•铸铁无振动运行

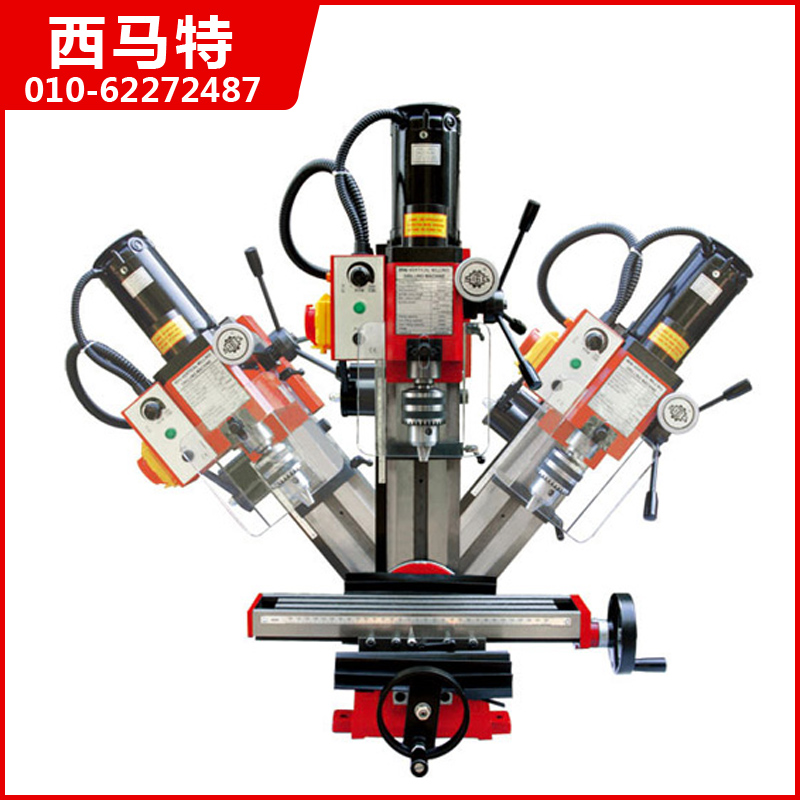

•铣削头和列倾斜45°左&右
•2速变速箱的变速电机
•operationsFine向下进给控制准确的工具高度设置
•3MT主轴配有一个13mm的钻夹头和乔木
•粗下来的饲料钻井
•尺寸表长:460*120毫米






技术参数:


最大钻孔能力                               16毫米

最大端面铣能力                            20毫米

最大表面铣能力                            35毫米

横向行程(X)                             300毫米

纵向行程(Y)                             130毫米

主轴箱行程(Z)                          180毫米

主轴中心线到立柱表面距离          167毫米

立柱可倾斜角度                            左右各45度

主轴孔锥度                                   莫氏3号/莫氏8号

电机输出功率                               350瓦

主轴转速                                      100-2500转/分±10%

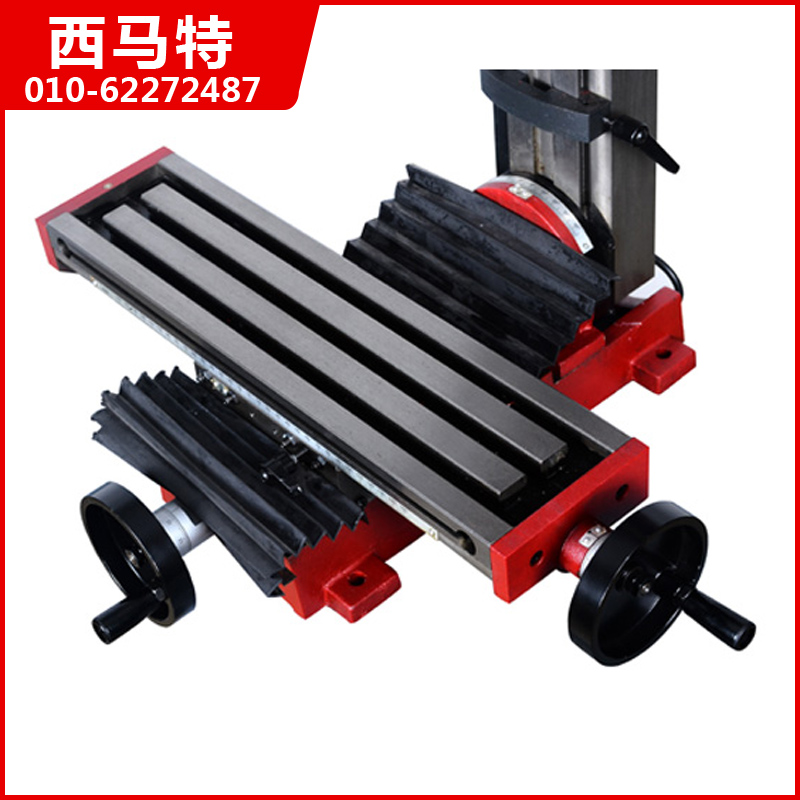

工作台有效尺寸                           460x120毫米

T型槽尺寸                                  12毫米


随机附件:

13毫米钻夹头、 扳手组件

以下是可选附件:
Serial No.
Item Description
Suitable for Models
S/N:10036
Quick vice100mm


U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M6

S/N:10037
MT3 Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,SX4,M6

S/N:10038

S/N:10039

S/N:10040

S/N:10041

S/N:10042

S/N:10043

S/N:10044

S/N:10045

2 Flute Hss end mill ¢4mm

2 Flute Hss end mill ¢6mm

2 Flute Hss end mill ¢8mm

2 Flute Hss end mill ¢10mm

2 Flute Hss end mill ¢12mm

2 Flute Hss end mill ¢14mm

2 Flute Hss end mill ¢16mm

¢4-16 mm

X1,SX1,X2,X2L,

SX2,SX2L,X2P,XN2

S/N:10056
Drill bit 1-13 mm 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10057
Drill bit Tin coated 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10058
Drill bit 1-10 mm 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10059
Drill bit Tin coated 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10065

S/N:10066



4 Flute HSS end mill (metric 7 pcs)

4 Flute HSS end mill (metric 6pcs)

X1,SX1,X2,X2L,SX2,

SX2L,X3,X3L,SX3,SX3L

S/N:10102

S/N:10103

4 Flute HSS end mill (imperial 6 pcs)

4 Flute HSS end mill (imperial 8 pcs)

X1,SX1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10094
Rotary table 100mm

U1,SU1,SX0,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-1
Dividing plate for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-2
Tailstock for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10109
Vice width 80mm

X2,X2L,SX2,SX2L,X2P,

X2P,X3,X3L,SX3,SX3L

S/N:10119

S/N:10120

S/N:10121

S/N:10122

S/N:10123

S/N:10124

S/N:10125

S/N:10126

Collet MT3 ¢4mm

Collet MT3 ¢6mm

Collet MT3 ¢8mm

Collet MT3 ¢10mm

Collet MT3 ¢12mm

Collet MT3 ¢14mm

Collet MT3 ¢16mm

Collet MT3 ¢4-16mm

X2,X2L,SX2,SX2L,X2P
S/N:10127
Stub milling machine arbor for
For slitting saw hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10128
Boring arbor with boring cutter
MT#3

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10129
Stub milling machine arbor for For slitting saw, hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

底座:S/N:10255A (410X490X905MM)
