Product Details

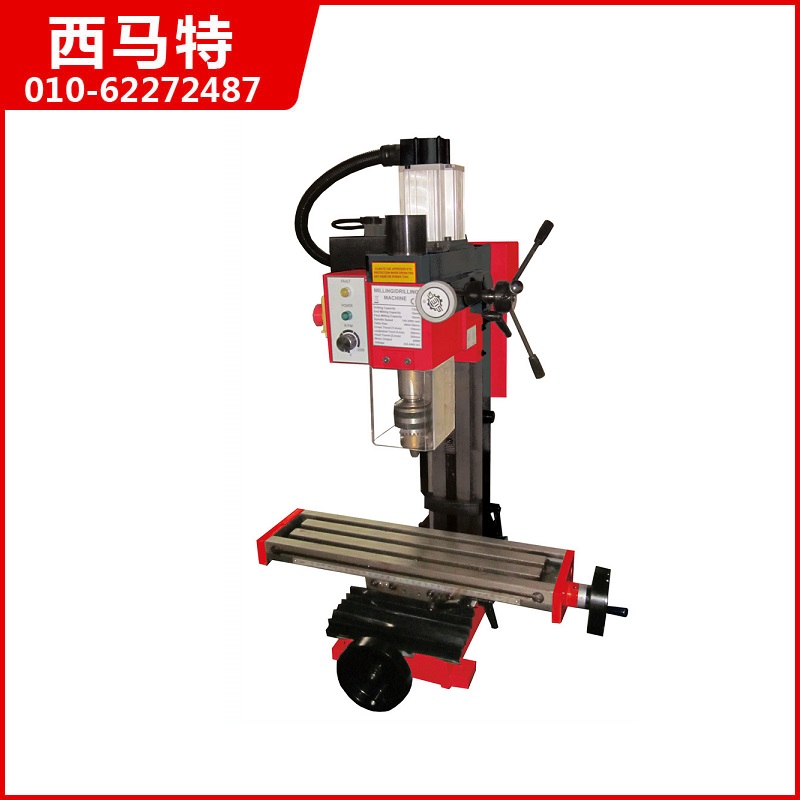

Products Name:SX2LF Mini Mill Drill


Key Feature:SX2 with fixed column, special base and large table
                              500W high torque DC brushless motor
                              Coarse down feed for drilling operations
                              Hardened slide ways with gib strip adjustment
                              Precision ground table with Tee slots for material clamping

Specifications
Drilling capacity     16 mm
End milling capacity        20 mm
Face milling capacity     35 mm
Longitudinal axis (X)     300 mm
Cross axis (Y)     130 mm
Headstock travel (Z)     250 mm
Throat     167 mm
Max. distance spindle to table     280 mm
Head tilt     0
Spindle taper     MT3 or R8
Spindle speed     100-2500 ±10% rpm
Motor output power(Brushless motor)     500 W
Table effective size     460x120 mm
T-slot size     12 mm
Overal dimenstion (LxWxH)     620x550x700 mm
Packing size (LxWxH)     640x600x730 mm
Weight (Net/Gross)     58/75kg

Optional Accessories
以下是可选附件:

Serial No.
Item Description
Suitable for Models
S/N:10036
Quick vice100mm


U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M6

S/N:10037
MT3 Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,SX4,M6

S/N:10038

S/N:10039

S/N:10040

S/N:10041

S/N:10042

S/N:10043

S/N:10044

S/N:10045

2 Flute Hss end mill ¢4mm

2 Flute Hss end mill ¢6mm

2 Flute Hss end mill ¢8mm

2 Flute Hss end mill ¢10mm

2 Flute Hss end mill ¢12mm

2 Flute Hss end mill ¢14mm

2 Flute Hss end mill ¢16mm

¢4-16 mm

X1,SX1,X2,X2L,

SX2,SX2L,X2P,XN2

S/N:10056
Drill bit 1-13 mm 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10057
Drill bit Tin coated 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10058
Drill bit 1-10 mm 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10059
Drill bit Tin coated 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10065

S/N:10066



4 Flute HSS end mill (metric 7 pcs)

4 Flute HSS end mill (metric 6pcs)

X1,SX1,X2,X2L,SX2,

SX2L,X3,X3L,SX3,SX3L

S/N:10102

S/N:10103

4 Flute HSS end mill (imperial 6 pcs)

4 Flute HSS end mill (imperial 8 pcs)

X1,SX1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10094
Rotary table 100mm

U1,SU1,SX0,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-1
Dividing plate for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-2
Tailstock for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10109
Vice width 80mm

X2,X2L,SX2,SX2L,X2P,

X2P,X3,X3L,SX3,SX3L

S/N:10119

S/N:10120

S/N:10121

S/N:10122

S/N:10123

S/N:10124

S/N:10125

S/N:10126

Collet MT3 ¢4mm

Collet MT3 ¢6mm

Collet MT3 ¢8mm

Collet MT3 ¢10mm

Collet MT3 ¢12mm

Collet MT3 ¢14mm

Collet MT3 ¢16mm

Collet MT3 ¢4-16mm

X2,X2L,SX2,SX2L,X2P
S/N:10127
Stub milling machine arbor for
For slitting saw hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10128
Boring arbor with boring cutter
MT#3

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10129
Stub milling machine arbor for For slitting saw, hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

底座:S/N:10255A (410X490X905MM)
