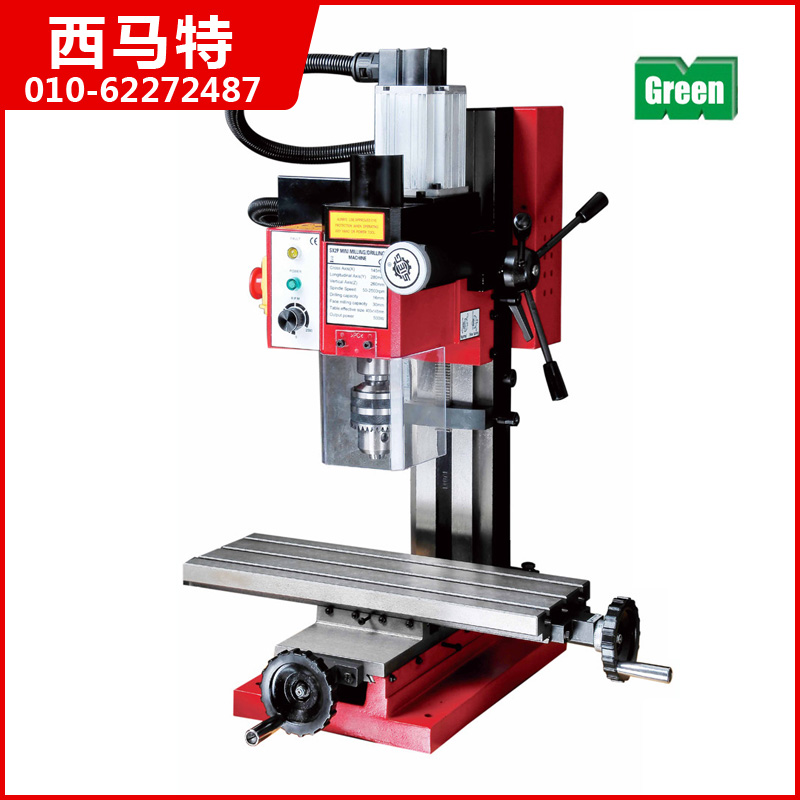

小型钻铣床SX2P

特点:
SX2P Mini Mill Drill小钻铣
• Cast iron for vibration free running铸铁无振动运行
• 500W high torque DC brushless motor500W高扭矩DC无刷电机
• Coarse down feed for drilling operations进给料钻井作业
• Hardened slide ways with gib strip adjustment硬化滑道,与GIB条调整
• Precision ground table with Tee slots for material clamping精密研磨材料夹紧表与2485-1987 T形槽
• With wide size table: 400*145 mm宽尺寸表:400 * 145毫米



Specifications技术参数

Drilling capacity最大钻孔夹持能力 16 mm
End milling capacity最大端铣夹持能力 20 mm
Face milling capacity最大面铣夹持能力 35 mm
Longitudinal axis (X)纵向轴线行程 280 mm
Cross axis (Y)横向十字轴行程 140 mm
Headstock travel (Z)主轴箱行程 260 mm
Throat喉径(主轴中心线到立柱表面的距离) 167 mm
Spindle taper主轴锥度 MT3 or R8
Spindle speed主轴转速 100-2500 ±10% rpm
Motor output power(Brushless motor)电机输出功率(无刷电机) 500 W
Table effective size工作台有效尺寸 400x145 mm
T-slot size T型槽尺寸 8 mm
Overal dimenstion (LxWxH)外形尺寸 520x580x760 mm
Packing size (LxWxH)包装尺寸 540x540x730 mm
Weight (Net/Gross)重量(净重/毛重) 58/75 kg

Optional Accessories以下是可选附件:
Serial No.
Item Description
Suitable for Models
S/N:10036
Quick vice100mm


U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M6

S/N:10037
MT3 Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,SX4,M6

S/N:10038

S/N:10039

S/N:10040

S/N:10041

S/N:10042

S/N:10043

S/N:10044

S/N:10045

2 Flute Hss end mill ¢4mm

2 Flute Hss end mill ¢6mm

2 Flute Hss end mill ¢8mm

2 Flute Hss end mill ¢10mm

2 Flute Hss end mill ¢12mm

2 Flute Hss end mill ¢14mm

2 Flute Hss end mill ¢16mm

¢4-16 mm

X1,SX1,X2,X2L,

SX2,SX2L,X2P,XN2

S/N:10056
Drill bit 1-13 mm 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10057
Drill bit Tin coated 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10058
Drill bit 1-10 mm 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10059
Drill bit Tin coated 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10065

S/N:10066



4 Flute HSS end mill (metric 7 pcs)

4 Flute HSS end mill (metric 6pcs)

X1,SX1,X2,X2L,SX2,

SX2L,X3,X3L,SX3,SX3L

S/N:10102

S/N:10103

4 Flute HSS end mill (imperial 6 pcs)

4 Flute HSS end mill (imperial 8 pcs)

X1,SX1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10094
Rotary table 100mm

U1,SU1,SX0,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-1
Dividing plate for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-2
Tailstock for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10109
Vice width 80mm

X2,X2L,SX2,SX2L,X2P,

X2P,X3,X3L,SX3,SX3L

S/N:10119

S/N:10120

S/N:10121

S/N:10122

S/N:10123

S/N:10124

S/N:10125

S/N:10126

Collet MT3 ¢4mm

Collet MT3 ¢6mm

Collet MT3 ¢8mm

Collet MT3 ¢10mm

Collet MT3 ¢12mm

Collet MT3 ¢14mm

Collet MT3 ¢16mm

Collet MT3 ¢4-16mm

X2,X2L,SX2,SX2L,X2P
S/N:10127
Stub milling machine arbor for
For slitting saw hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10128
Boring arbor with boring cutter
MT#3

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10129
Stub milling machine arbor for For slitting saw, hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

底座:S/N:10274 (410X490X905MM)
