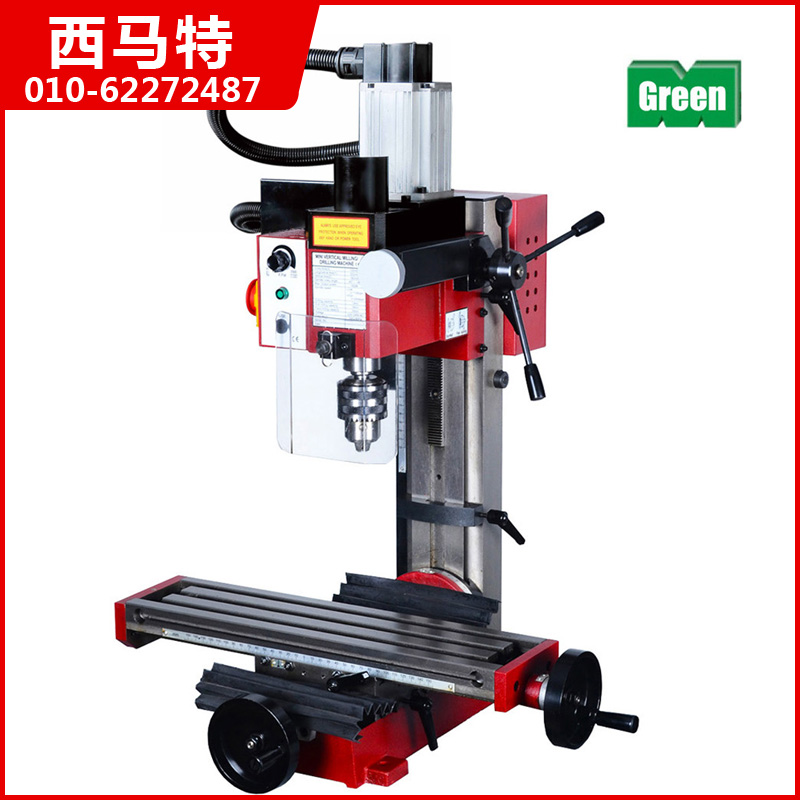

迷你钻铣床SX2L
特点：
•铸铁无振动运行
•铣削头和列倾斜45°左＆右
•2速变速箱的变速电机
•operationsFine向下进给控制准确的工具高度设置
•3MT主轴配有一个13mm的钻夹头和乔木
•可以添加自动进给作业
•尺寸表长：460*120毫米
技术参数：
最大钻孔能力 16毫米
最大端面铣能力 20毫米
最大表面铣能力 35毫米
横向行程（X） 300毫米
纵向行程（Y） 130毫米
主轴箱行程（Z） 180毫米
主轴中心线到立柱表面距离 167毫米
立柱可倾斜角度 左右各45度
主轴孔锥度 莫氏3号/莫氏8号
电机输出功率 500瓦
主轴转速 100-2500转/分±10%
工作台有效尺寸 460x120毫米
Ｔ型槽尺寸 12毫米
随机附件：
13毫米钻夹头、 扳手组件
以下是可选附件：
|
Serial No. |
Item Description |
Picture |
Suitable for Models |
|
S/N:10036 |
Quick vice100mm |
|
U1,SU1,X2,X2L,
SX2,SX2L,X2P,X3,
X3L,SX3,SX3L,M6 |
|
S/N:10037 |
MT3 Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm |
|
U1,SU1,X2,X2L,
SX2,SX2L,X2P,X3,
X3L,SX3,SX3L,SX4,M6 |
S/N:10038
S/N:10039
S/N:10040
S/N:10041
S/N:10042
S/N:10043
S/N:10044
S/N:10045 |
2 Flute Hss end mill ￠4mm
2 Flute Hss end mill ￠6mm
2 Flute Hss end mill ￠8mm
2 Flute Hss end mill ￠10mm
2 Flute Hss end mill ￠12mm
2 Flute Hss end mill ￠14mm
2 Flute Hss end mill ￠16mm
￠4-16 mm |
|
X1,SX1,X2,X2L,
SX2,SX2L,X2P,XN2 |
|
S/N:10056 |
Drill bit 1-13 mm 25 pcs |
|
X2,X2L,SX2,SX2L,
X2P,X3,X3L,SX3,SX3L,
Z1,Z2,Z3,Z4 |
|
S/N:10057 |
Drill bit Tin coated 25 pcs |
|
X2,X2L,SX2,SX2L,
X2P,X3,X3L,SX3,SX3L,
Z1,Z2,Z3,Z4 |
|
S/N:10058 |
Drill bit 1-10 mm 19 pcs |
|
X2,X2L,SX2,SX2L,
X2P,X3,X3L,SX3,SX3L,
Z1,Z2,Z3 |
|
S/N:10059 |
Drill bit Tin coated 19 pcs |
|
X2,X2L,SX2,SX2L,
X2P,X3,X3L,SX3,SX3L,
Z1,Z2,Z3 |
|
|
4 Flute HSS end mill (metric 7 pcs)
4 Flute HSS end mill (metric 6pcs) |
|
X1,SX1,X2,X2L,SX2,
SX2L,X3,X3L,SX3,SX3L |
|
|
4 Flute HSS end mill (imperial 6 pcs)
4 Flute HSS end mill (imperial 8 pcs) |
|
X1,SX1,X2,X2L,SX2,SX2L,
X2P,X3,X3L,SX3,SX3L |
|
S/N:10094 |
Rotary table 100mm |
|
U1,SU1,SX0,X2,X2L,
SX2,SX2L,X2P,X3,
X3L,SX3,SX3L,M1 |
|
S/N:10094-1 |
Dividing plate for S/N:10094 |
|
U1,SU1,X2,X2L,
SX2,SX2L,X2P,X3,
X3L,SX3,SX3L,M1 |
|
S/N:10094-2 |
Tailstock for S/N:10094 |
|
U1,SU1,X2,X2L,
SX2,SX2L,X2P,X3,
X3L,SX3,SX3L,M1 |
|
S/N:10109 |
Vice width 80mm |
|
X2,X2L,SX2,SX2L,X2P,
X2P,X3,X3L,SX3,SX3L |
S/N:10119
S/N:10120
S/N:10121
S/N:10122
S/N:10123
S/N:10124
S/N:10125
S/N:10126 |
Collet MT3 ￠4mm
Collet MT3 ￠6mm
Collet MT3 ￠8mm
Collet MT3 ￠10mm
Collet MT3 ￠12mm
Collet MT3 ￠14mm
Collet MT3 ￠16mm
Collet MT3 ￠4-16mm |
|
X2,X2L,SX2,SX2L,X2P |
|
S/N:10127 |
Stub milling machine arbor for
For slitting saw hole ￠16mm |
|
X2,X2L,SX2,SX2L,
X2P,X3,X3L,SX3,SX3L |
|
S/N:10128 |
Boring arbor with boring cutter
MT#3 |
|
X2,X2L,SX2,SX2L,
X2P,X3,X3L,SX3,SX3L |
|
S/N:10129 |
Stub milling machine arbor for For slitting saw, hole ￠16mm |
|
X2,X2L,SX2,SX2L,

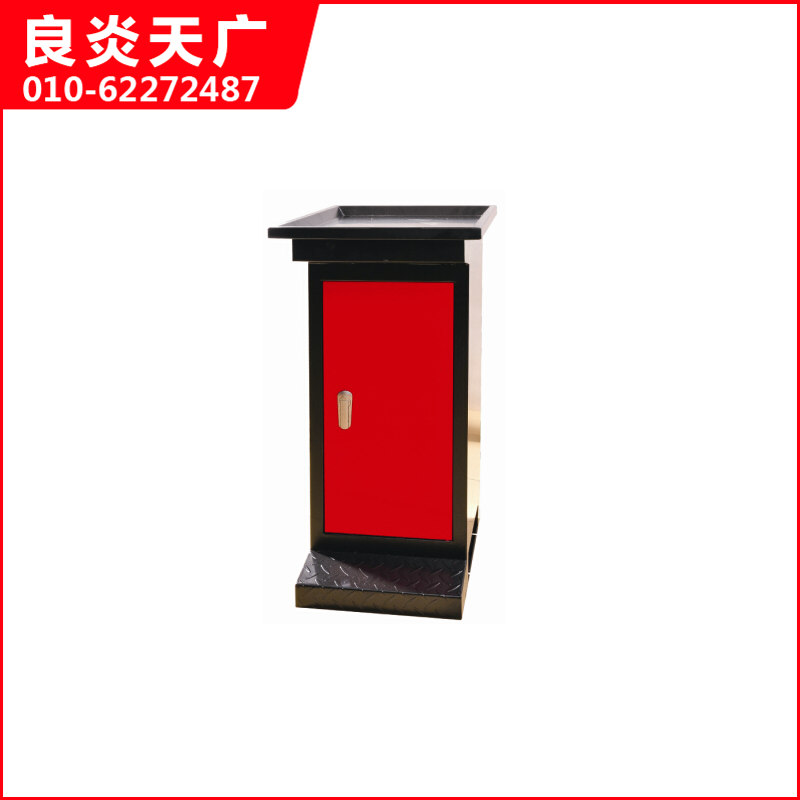

X2P,X3,X3L,SX3,SX3L | 底座：S/N:10255A (410X490X905MM)
|
