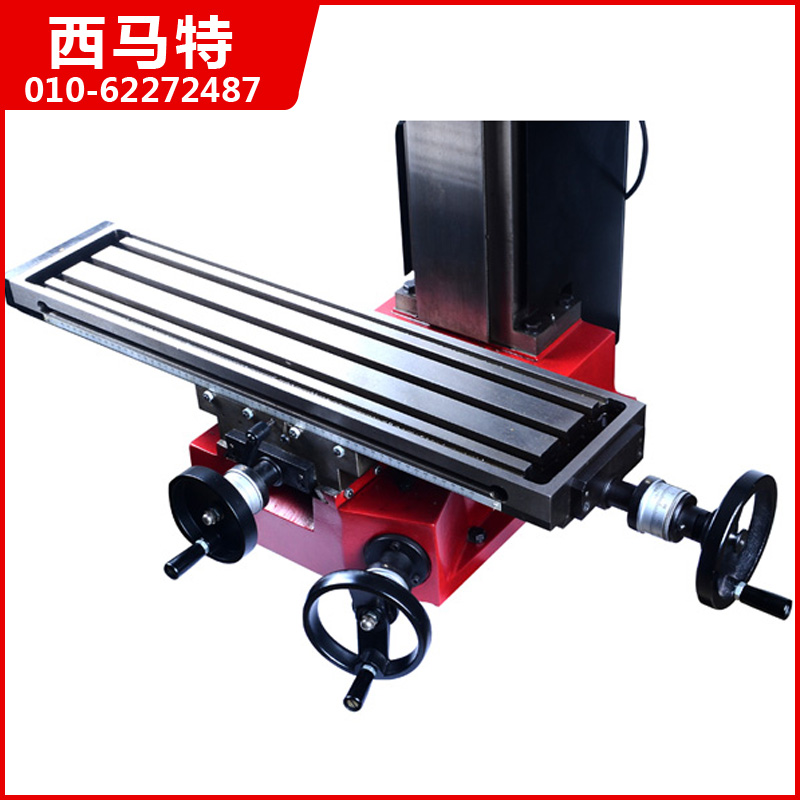

小型精密数显钻铣机床 SUPER X3 XJ9522C

特点:触摸式操作开关、攻丝功能、微量进给、可卧铣、紧急拍停开关、速度无级可调、数字显示转速和钻铣深度、主轴箱可转角度、无刷大功率电机。基于高精密的产品技术,使用众多的附件可进行多方面的工作。





技术参数:

最大钻孔能力                                        25毫米
最大攻丝能力                                        12毫米
最大端面铣能力                                    16毫米
最大表面铣能力                                    50毫米
主轴行程                                               70毫米
主轴箱行程(Z)                                  380毫米
横向行程(X)                                     145毫米
纵向行程(Y)                                     400毫米
主轴中心线到立柱表面距离                  230毫米
主轴端面到工作台面的最大距离          380毫米
主轴孔锥度                                          莫氏3号
主轴转速   (无级调速)                          100-1750转/分±10%
电压                                                     220V
电机输出功率                                      1000瓦
工作台有效尺寸                                   550x160毫米
T型槽尺寸                                           12毫米
外形尺寸(长x宽x高)                        760x720x930毫米
净重/毛重                                            165/198公斤
包装尺寸(长x宽x高)                        840x820x1040毫米

铣床特征:
无级调速 钻铣深度和主轴转速显示,触摸式操作开关 功丝功能
微量进给功能 主轴箱可转角度,无刷大功率电机

随机附件:
13毫米钻夹头 扳手套件

以下是可选附件:

Serial No.
Item Description
Suitable for Models
S/N:10036
Quick vice100mm

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M6

S/N:10037
MT3 Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,SX4,M6



S/N:10045



2 Flute Hss end mil ¢4-16 mm

Chuck dia.4, 6, 8, 10, 12, 14, 16mm

X1,SX1,X2,X2L,

SX2,SX2L,X2P,XN2,X3

S/N:10046
Indexable carbide end mill MT3 Ø30mm

U1,SU1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,M6

S/N:10047
Clamping kit 58pcs

U1,SU1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,M6

S/N:10056
Drill bit 1-13 mm 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10057
Drill bit Tin coated 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10058
Drill bit 1-10 mm 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10059
Drill bit Tin coated 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10065

S/N:10066



4 Flute HSS end mill (metric 7 pcs)

4 Flute HSS end mill (metric 6pcs)

X1,SX1,X2,X2L,SX2,

SX2L,X3,X3L,SX3,SX3L

S/N:10102

S/N:10103

4 Flute HSS end mill (imperial 6 pcs)

4 Flute HSS end mill (imperial 8 pcs)

X1,SX1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10094
Rotary table 100mm

U1,SU1,SX0,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-1
Dividing plate for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-2
Tailstock for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10109
Vice width 80mm

X2,X2L,SX2,SX2L,X2P,

X2P,X3,X3L,SX3,SX3L

S/N:10113
Indexable carbide end mill Ø50mm
X2,X2L,SX2,SX2L,X2P
S/N:10114A
One piece stand
X3,X3L,SX3,SX3L
S/N:10126
Collet MT3 ¢4-16mm

U1,SU1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10127
Stub milling machine arbor for hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10128
Boring arbor with boring cutter

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10129
Stub milling machine arbor for hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10135
Work table with angle
X3,X3L,SX3,SX3L
S/N:10141
Auto feeder
SX3L,X3L,X3,SX3
S/N:10142
Vice width 100mm
SX3,X3L,X3,SX3L
S/N:10150
Work table for horizontal milling
SX3,X3,X3L,SX3L

S/N:10240B(460X730X880MM)
