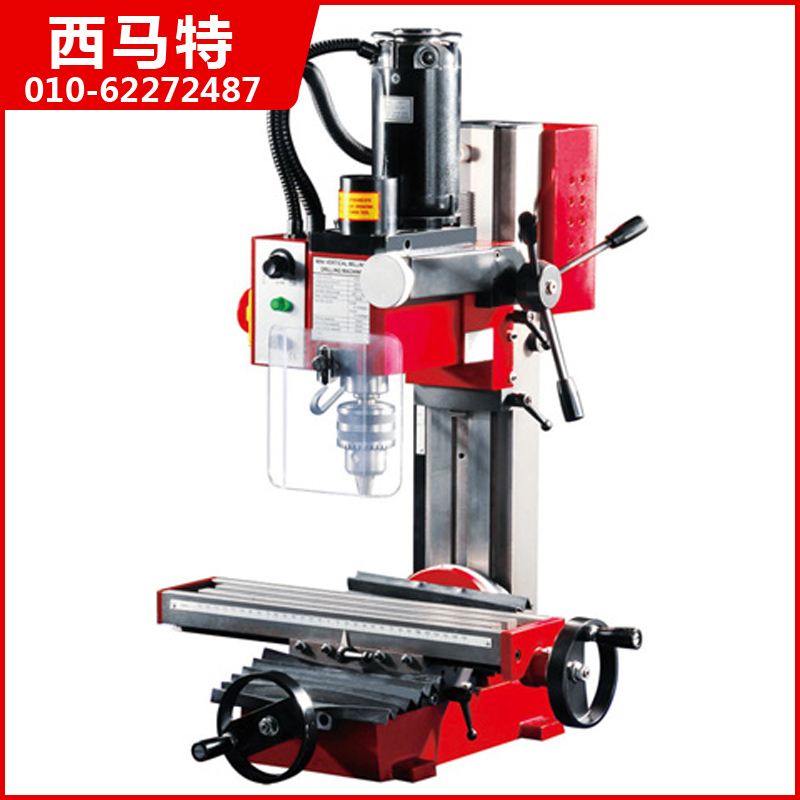

立式钻铣床X2/220V

特色:具有体积小,功能多,重量轻,加工材料广泛 ( 金属、木材、塑料等 ) 、占用空间小、便于携带等特点,紧急拍停开关、速度无级可调、高精确度。基于高精密的产品技术,使用众多的附件可进行多方面的工作。





技术参数:

最大钻孔能力                                    13毫米
最大端面铣能力                                 16毫米
最大表面铣能力                                 30毫米
主轴箱行程(Z)                               180毫米
横向行程(X)                                  100毫米
纵向行程(Y)                                  220毫米
主轴中心线到立柱表面距离               170毫米

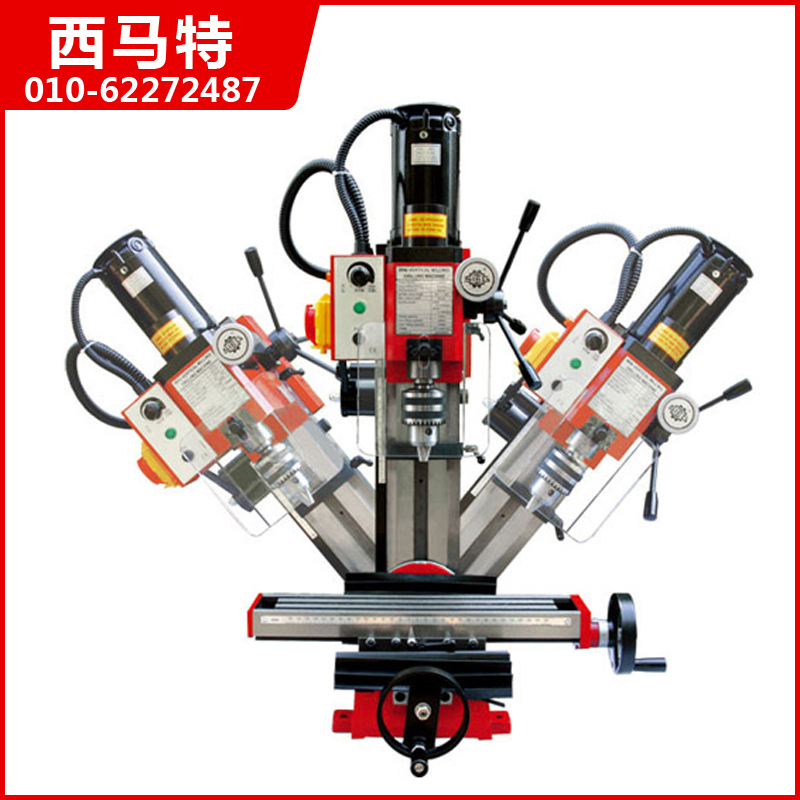

立柱可倾斜角度                                 左右各45度
主轴端面到工作台面的最大距离        280毫米
主轴孔锥度                                        莫氏3号
主轴转速 低速                                  100-1100转/分±10%
主轴转速 高速                                  100-2500转/分±10%
电压                                                  220V
电机输出功率                                    350瓦

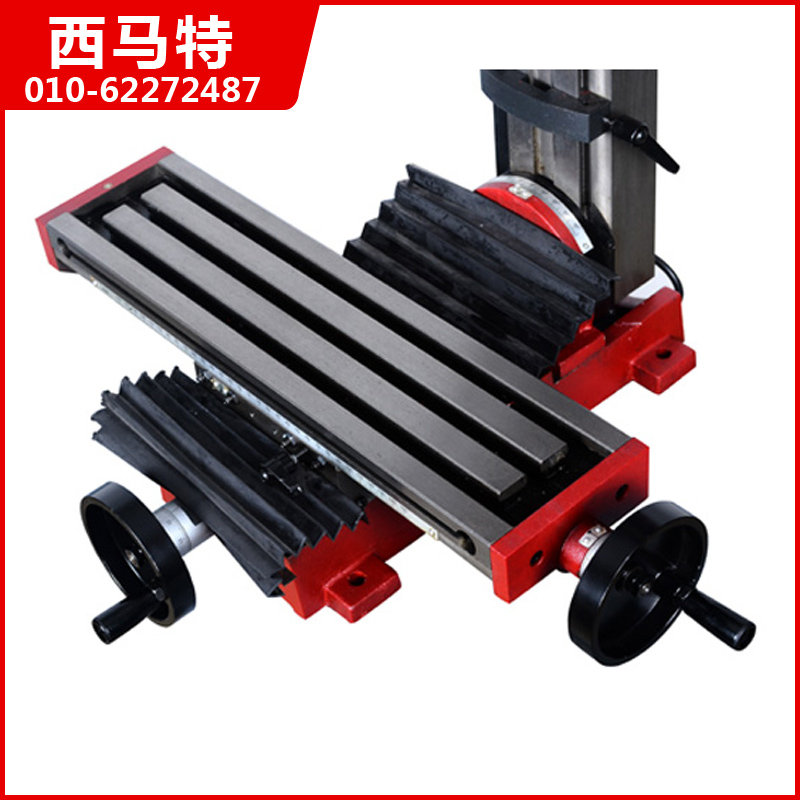

工作台有效尺寸                                390x92毫米
T型槽尺寸                                        12毫米
外形尺寸(长x宽x高)                       520x500x760毫米
净重/毛重                                         50/68公斤
包装尺寸(长x宽x高)                       540x500x760毫米

随机附件:

1钻铣床 X2 XJ9510/1台;2钻夹头 1-13mm/1件;3钻夹头钥匙/1件;4钻夹头接柄 MT3/1件;5钩头扳手(从机床上拆下)/1件;6固定轴销/1套;7T型槽螺母/2个;8双头扳手 8*10/1件;9双头扳手 14*17/1件;10单头扳手 19/1件;11大六角扳手36/1件;12保险管2A/1件;13使用说明书/1册

以下是可选附件:

Serial No.
Item Description
Suitable for Models
S/N:10036
Quick vice100mm


U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M6

S/N:10037
MT3 Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,SX4,M6

S/N:10038

S/N:10039

S/N:10040

S/N:10041

S/N:10042

S/N:10043

S/N:10044

S/N:10045

2 Flute Hss end mill ¢4mm

2 Flute Hss end mill ¢6mm

2 Flute Hss end mill ¢8mm

2 Flute Hss end mill ¢10mm

2 Flute Hss end mill ¢12mm

2 Flute Hss end mill ¢14mm

2 Flute Hss end mill ¢16mm

¢4-16 mm

X1,SX1,X2,X2L,

SX2,SX2L,X2P,XN2

S/N:10056
Drill bit 1-13 mm 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10057
Drill bit Tin coated 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10058
Drill bit 1-10 mm 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10059
Drill bit Tin coated 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10065

S/N:10066



4 Flute HSS end mill (metric 7 pcs)

4 Flute HSS end mill (metric 6pcs)

X1,SX1,X2,X2L,SX2,

SX2L,X3,X3L,SX3,SX3L

S/N:10102

S/N:10103

4 Flute HSS end mill (imperial 6 pcs)

4 Flute HSS end mill (imperial 8 pcs)

X1,SX1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10094
Rotary table 100mm

U1,SU1,SX0,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-1
Dividing plate for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-2
Tailstock for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10109
Vice width 80mm

X2,X2L,SX2,SX2L,X2P,

X2P,X3,X3L,SX3,SX3L

S/N:10119

S/N:10120

S/N:10121

S/N:10122

S/N:10123

S/N:10124

S/N:10125

S/N:10126

Collet MT3 ¢4mm

Collet MT3 ¢6mm

Collet MT3 ¢8mm

Collet MT3 ¢10mm

Collet MT3 ¢12mm

Collet MT3 ¢14mm

Collet MT3 ¢16mm

Collet MT3 ¢4-16mm

X2,X2L,SX2,SX2L,X2P
S/N:10127
Stub milling machine arbor for
For slitting saw hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10128
Boring arbor with boring cutter
MT#3

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10129
Stub milling machine arbor for For slitting saw, hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

底座:S/N:10255B (410X490X905MM)
