Product Details

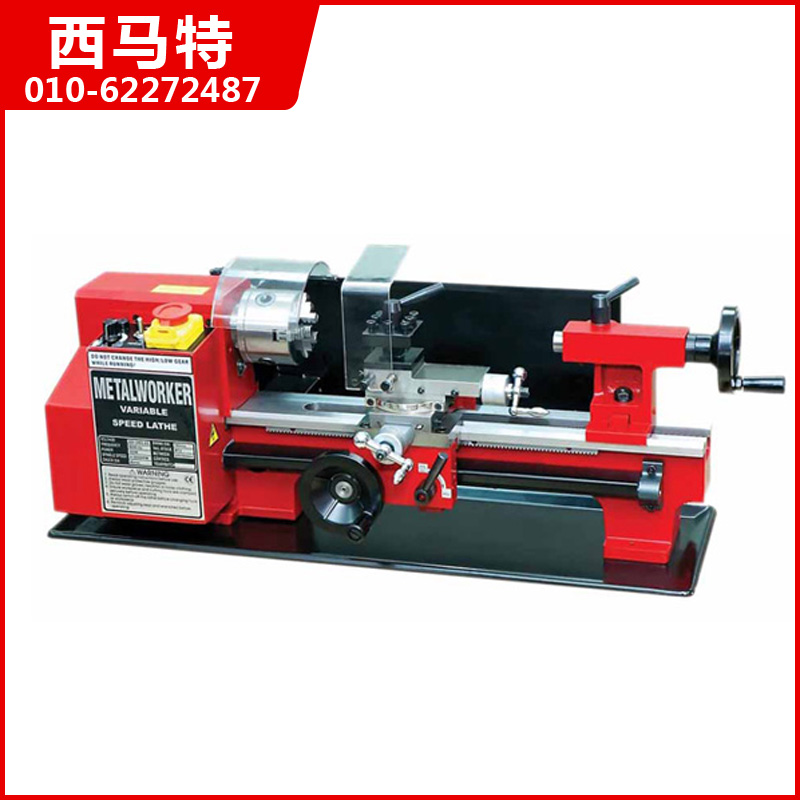

Products Name:C2 Mini Lathe







Key Feature:Constructed with cast iron giving great rigidity
                            Precision ground Vee bed slide ways
                            Fully featured saddle and carriage assembly including powered lead screw

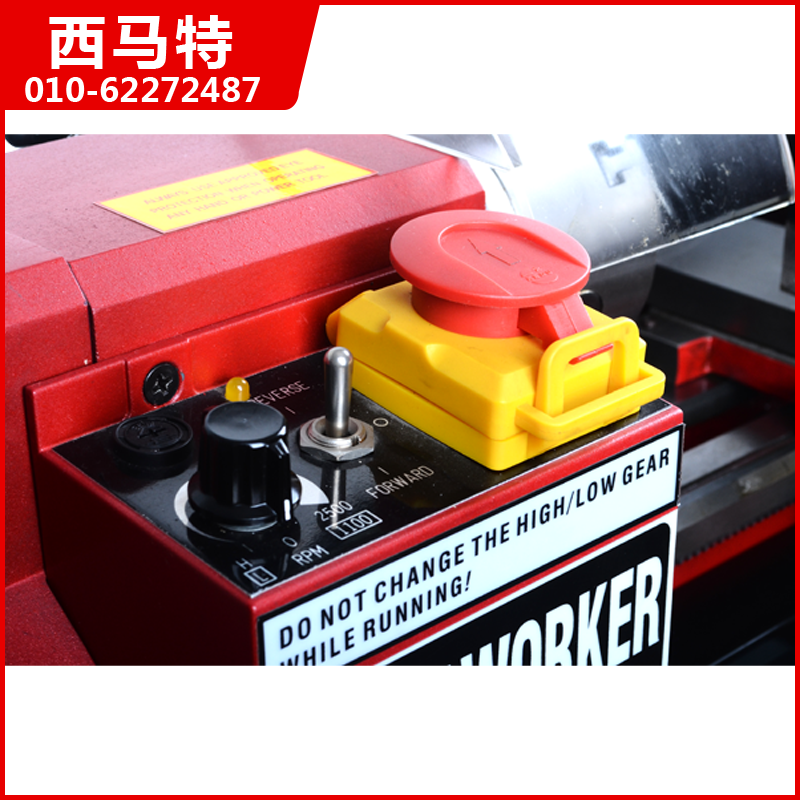

                            250W motor with variable speed and a 2 speed gearbox

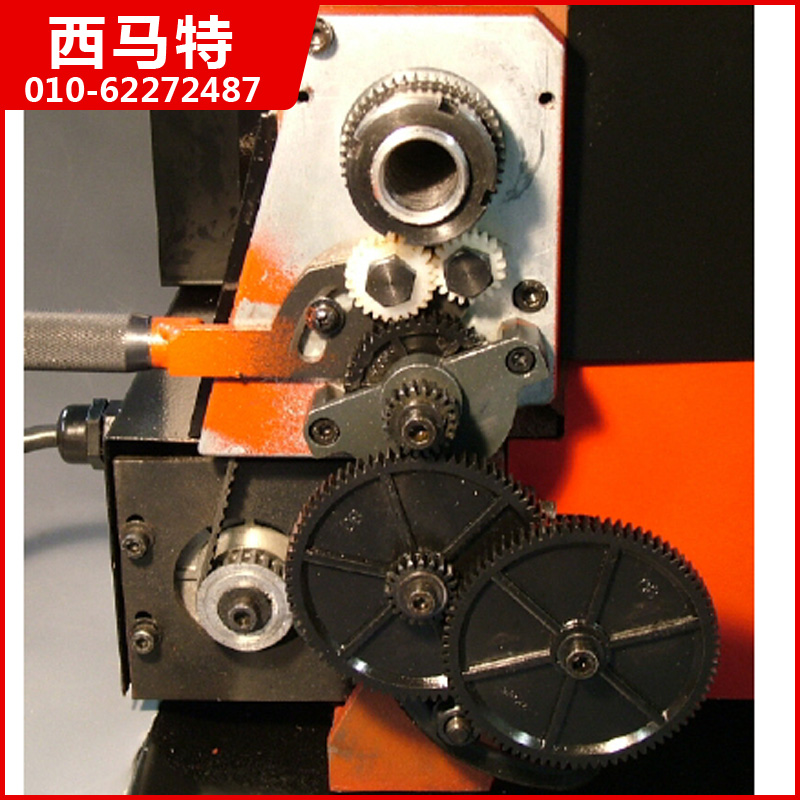

                            Change wheel set providing thread cutting selections between 0.4-2.0mm & 12-52 tp

Specifications
Swing over bed  180 mm
Distance between centers  Model 200  200 mm
                                        Model 300  300 mm
Hole through spindle  20 mm
Cross slide travel  65 mm
Compound travel   55 mm
Spindle taper  MT3
Tailstock taper  MT2
Spindle speed  Low range  100-1100 ±10% rpm
High range  100-2500 ±10% rpm
Motor output power  250 W
Range of threads  Metric  version  0.4-2.0 mm (10 thread pitches)
                            Imperial version  12-52 TPI (18 thread pitches)
Overall dimension(LxWxH)  Model200  600x300x300 mm
                                        Model 300  700x300x300 mm
Weight(Net/Gross)             Model 200  33/36 kg
                                                Model 300  37/40 kg
Packing size (LxWxH)         Model 200  690x360x390 mm
                                         Model 300  790x360x390 mm

Optional Accessories
Serial No.
Item Description
Suitable for Models
S/N:10000

Stand

Overall demension:

800*350*890mm

C0,C1,C2,SC2,C3

Z1,X0,X1,SX1,X2,SX2

S/N:10000A
Lux stand
Overall demension:
1000*660*710mm



C0,C1,C2,SC2,C3

Z1,X0,X1,SX1,X2,SX2

S/N:10001
Knob & hand wheel

C2,C3,SC2,SC3
S/N:10002
Metric 9 pcs

30T/35T/40T
40T/45T/50T
60T/80T/80T

C2,C3,SC2,SC3
S/N:10003
Imperial 13 pcs

30T/35T/40T/40T
45T/45T/50T/55T
57T/60T/65T/80T/80T


C2,C3,SC2,SC3
S/N:10004
Cutter 5 pieces set


DIN 4971R Straight cutter

DIN 4975 Tip cutter

DIN 4980R Right angle cutter

DIN 4980L Left angle cutter

DIN 4981R Cutter


C0,C2,SC2,M1
S/N:10005

Cutter 11 pieces set

DIN 4971R Straight cutter

DIN 4972R Angle cutter

DIN 4973R Bore cutter

DIN 4974R Bore cutter

DIN 4975 Tip cutter

DIN 4976 Wide edge cutter

DIN 4977R Right external turning cutter

DIN 4978R External turning cutter

DIN 4980L Left angle cutter

DIN 4980R Right angle cutter

DIN 4981R Cutter


CO,C1,C2,SC2,C3
S/N:10006

Cutter 6 pieces set

DIN 4972R Angle cutter

DIN 4973R Bore cutter

DIN 4974R Bore cutter

DIN 4976R Wide edge cutter

DIN 4977R Right external turning cutter

DIN 4978R External turning cutter


CO,C2,SC2
S/N:10007

Face plate¢160mm

Bolt size 12mm


C2,C3,SC2,SC3
S/N:10007A

Clamping kit for face plate

Bolt size 8mm

C2,C3,SC2,SC3
S/N:10008
Steady rest
C2,C3,SC2,SC3
S/N:10009
Follow rest

C2,C3,SC2,SC3
S/N:10010
¢80mm 4-jaw chuck


C1, C2,SC2,C3

X2P,SX3L,M1

S/N:10011
Quick change cutter rest
C2,SC2
S/N:10011-1
Tool post

C2,SC2
S/N:10011-2
Cutter holder

C2,SC2
S/N:10012

Tailstock chuck

Dia.13mm+MT#2


C2,SC2
S/N:10013

Spindle center

MT#3

C2,SC2,C3
S/N:10014

Rolling center

MT#2


C2,SC2,C3
S/N:10015
Lathe dog

C1,C2,SC2,C3,M1
S/N:10016
Cutter 2 pieces set
C2,SC2,
S/N:10029A
¢100mm 4-jaw chuck with flange


C2,SC2,C3
S/N:10061

Vertical slider

Slot size 50mm

C2,C3,SC2,SC3
S/N:10062
Digital spindle speed readout

C2
S/N:10064

Wood toolrest with center

MT#3


C2,C3,SC2,SC3
S/N:10100
¢100mm 3-jaw chuck
C2,SC2,C3
S/N:10100A
¢100mm 3-jaw chuck whe flange

C2,SC2,C3
S/N:10130
Knurling tool holder

C2,SC2
S/N:10131
Grinding attachment

C2,SC2,C3
S/N:10136
Rocker tool post

C2,C3,SC2,SC3
S/N:10140
DRCD kit

C2,SC2,C3
S/N:10147

Rolling tailstock chuck

Dia.13mm+MT#2


C2,SC2,C3
S/N:10148

Mill chuck set(metric)

chuck dia.4,6,8,10,12,14,16mm


C2,C3,SC2,SC3,C3
S/N:10182
Carriage stop
C2,C3,SC2,SC3
S/N:10200

Cutting set 8mm(Tin Coated)

DIN 4977R Right external turning cutter

DIN 4980L left cutter

DIN 4980R Right cutter

DIN 4975R Thread cutter

DIN 4981R Cutter




C1,C2,SC2
S/N:10200-1

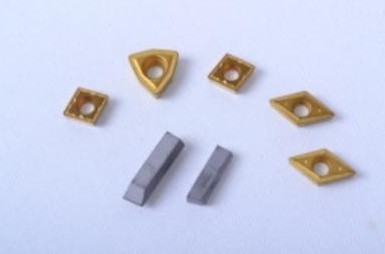

Tip replacement set

C1,C2,SC2
底座:S/N:10253A(C2-200,860X310X890MM);S/N:10253C(C2-300,860X310X890MM)
