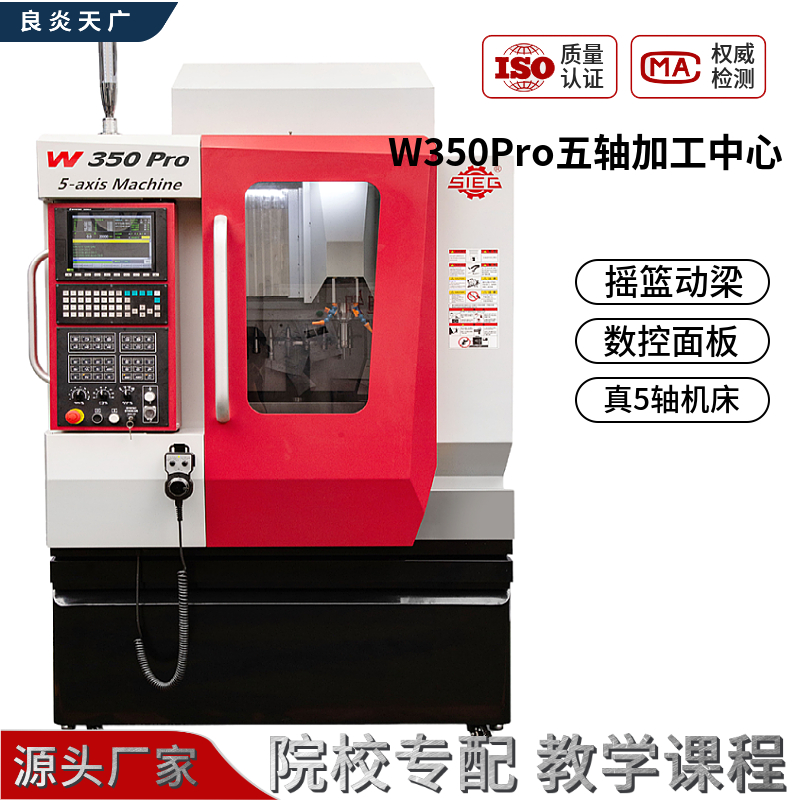

W350 Pro 5-axis CNC machine

Features
Model：W350 Pro 5-axis CNC machine
Structure：Mobile gantry，AC cradle type，five axis
Application industry： Metal processing
Processing method：Engraving and milling
Processing materials：Copper aluminum soft metal，plastic，wood unquenched metal，mold steel，stainless steel


Specifications

Class	Item	Parameter
Travel	X travel37	0mm
	Y travel	450mm
	Z travel	350mm
	A travel Rotary table size	-110°～+30°
	C travel Rotary table size	360°
	Rotary table size	350mm
	Worktable load	150KG
	Work space	Cylinder with diameter of 300mm x height of 350mm
Performance	Straight cutting feed	15000mm/min
	Straight fast feed	24000mm/min
	Rotary cutting feed	6000°/min
	Rotary fast feed	9000°/min
	Positioning accuracy	≤0.005mm
	Repatability accuracy	≤0.003mm
	Rotary positioning accuracy	≤20arcsec
	Rotary repatability accuracy	≤6arcsec
	Spindle taper	BT30
	Clamping range	ER32 1-20mm
	Spindle speed	24000r/min
	Spindle torque	6Nm
	Spindle power	7.5kw
	Tool change speed	<5 second
	Tool number	16
Others	Machine size	1700*1700*2400mm
	Machine weight	3000kg
