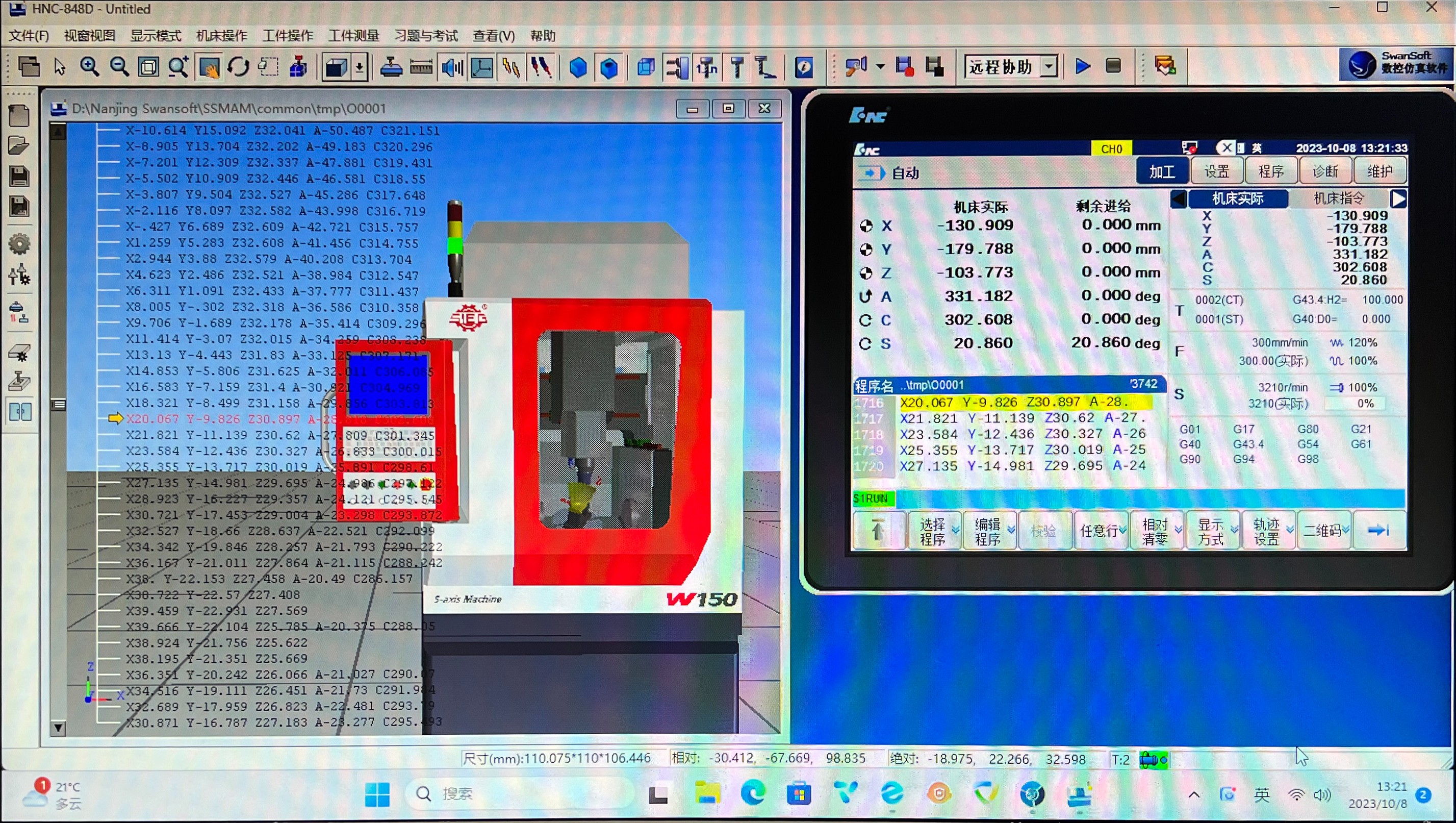

Digital twin model simulation, software built-in model presented 1:1 with physical machine tool

3、 Simulation software

1. Characteristics of simulation software:

(1) Blank definition, fixture calibration, workpiece clamping, benchmark tool alignment, tool installation, tool breakage effect after collision, manual operation of different panels in the same machine tool system, etc

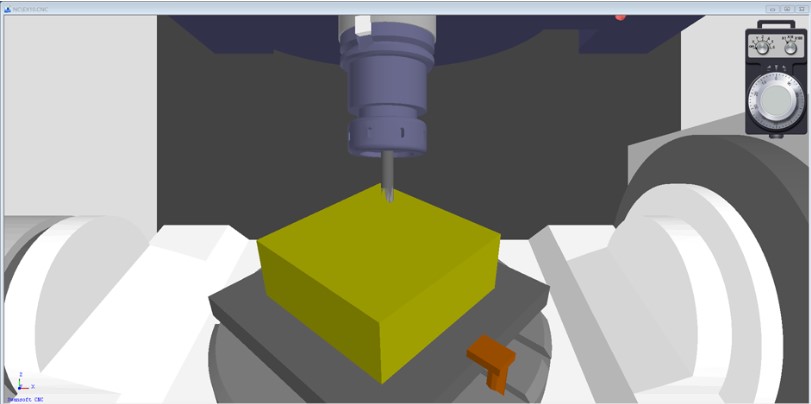

(2) Simulation of machining process: including editing, automatic operation, and manual input (MDI) modes of CNC machining programs; Real time cutting of 3D workpiece and display of tool trajectory; Provide tool compensation, coordinate system settings, etc.

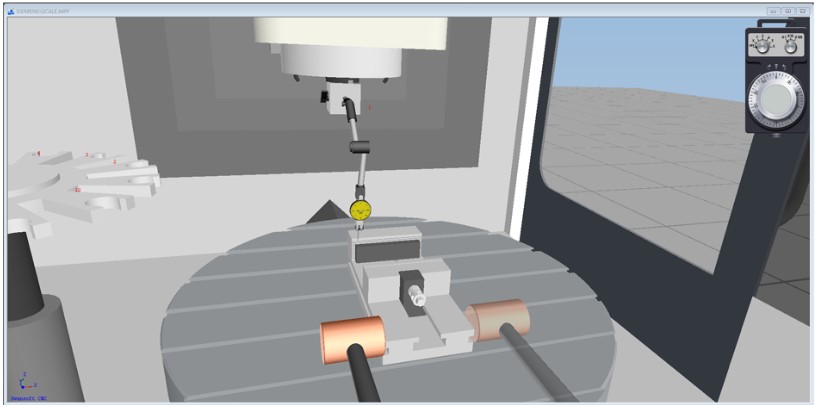

(3) Tool setting: Provide tools such as edge finder, reference core, Z-direction tool setting instrument, electronic probe, etc; Program editing: CNC programs generated by various CAM software can be imported through DNC, or manually edited through the panel.

(4) Extended functions: Support interpolation process simulation, dual screen display, and touch screen gesture operation.

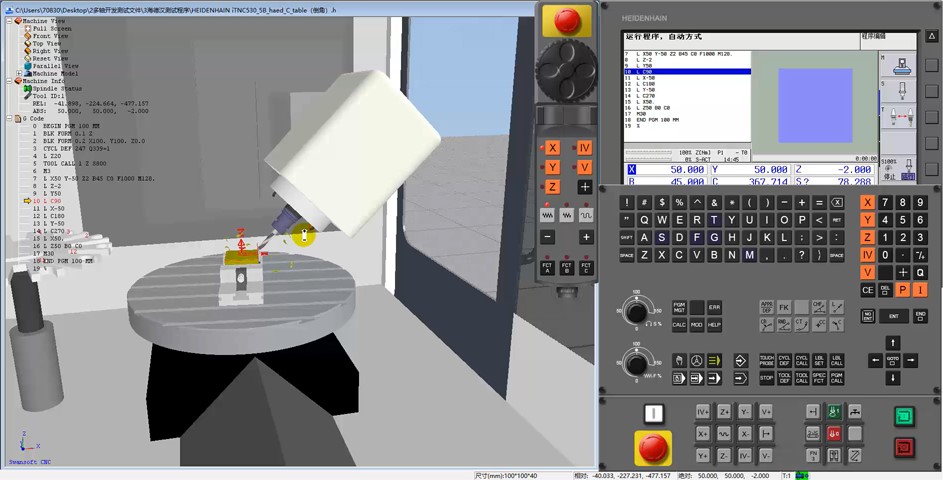

2. Software interface:





Teaching Implementation (Network Version Function)

3. Others
User management:

By registering a username and password through the server, students can log in to the network version of the simulation software from any PC in the local area network to achieve unified network management and monitoring

Exercise Management:

The server can add and edit exercises, teachers can send exercise pictures, students can answer questions, and exchange answers to facilitate communication between teachers and students

Network monitoring:

According to the registration information, the student operation process can be recorded, and the server can remotely control and query the student's login and exit as well as processing operations. At the same time, the teacher machine can broadcast one-to-many screens

Examination system:

Including question bank management, test paper management, exam process management, and automatic grading of test papers

Examination system:

Including exam data management, admission ticket management, and exam score management
