Features

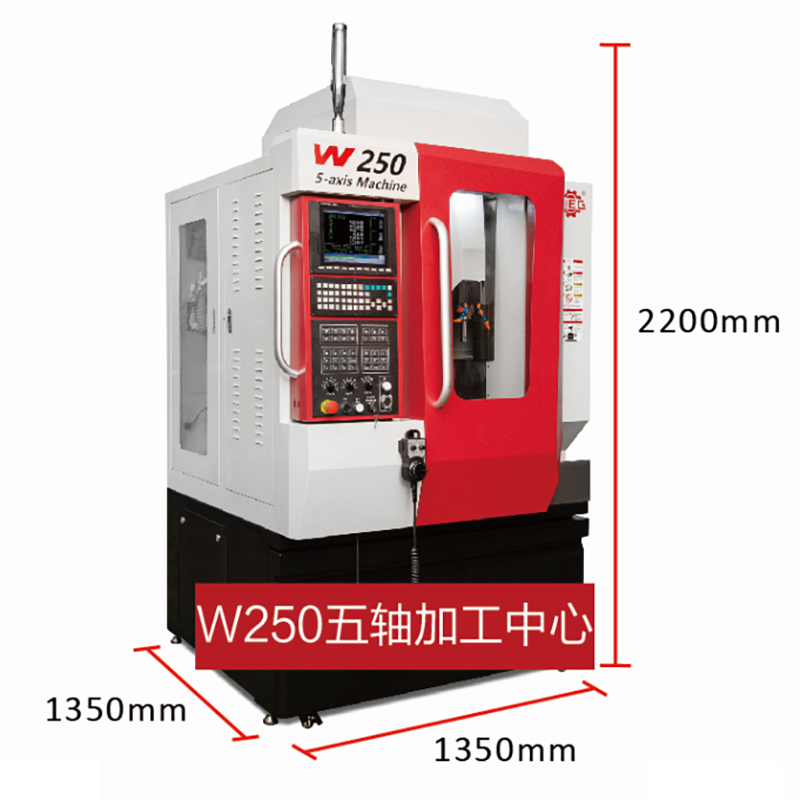

Model：W250 5-axis CNC machine
Structure：Mobile gantry，AC cradle type，five axis
Application industry： Metal processing
Processing method：Engraving and milling
Processing materials：Copper aluminum soft metal，plastic，wood unquenched metal，mold steel，stainless steel
Specifications
| Class |
Item |
Parameter |
| Travel |
X travel |
240mm |
| Y travel |
390mm |
| Z travel |
280mm |
| A travel Rotary table size |
-110°～+30° |
| C travel Rotary table size |
360° |
| Rotary table size |
245mm |
| Worktable load |
30KG |
| Work space |
Cylinder with diameter of 250mm x height of 230mm |
|
| Performance |
Straight cutting feed |
9000mm/min |
| Straight fast feed |
15000mm/min |
| Rotary cutting feed |
6000°/min |
| Rotary fast feed |
9000°/min |
| Positioning accuracy |
≤0.01mm |
| Repatability accuracy |
≤0.005mm |
| Rotary positioning accuracy |
≤30arcsec |
| Rotary repatability accuracy |
≤20arcsec |
| Spindle taper |
ISO20 |
| Clamping range |
ER20 1-12mm |
| Spindle speed |
4000r/min |
| Spindle torque |
2Nm |
| Spindle power |
3.0kw |
| Tool change speed |
<5 second |
| Tool number |
12 |
| Others |
Machine size |
1350*1350*2200mm |
| Machine weight |
1600kg |
