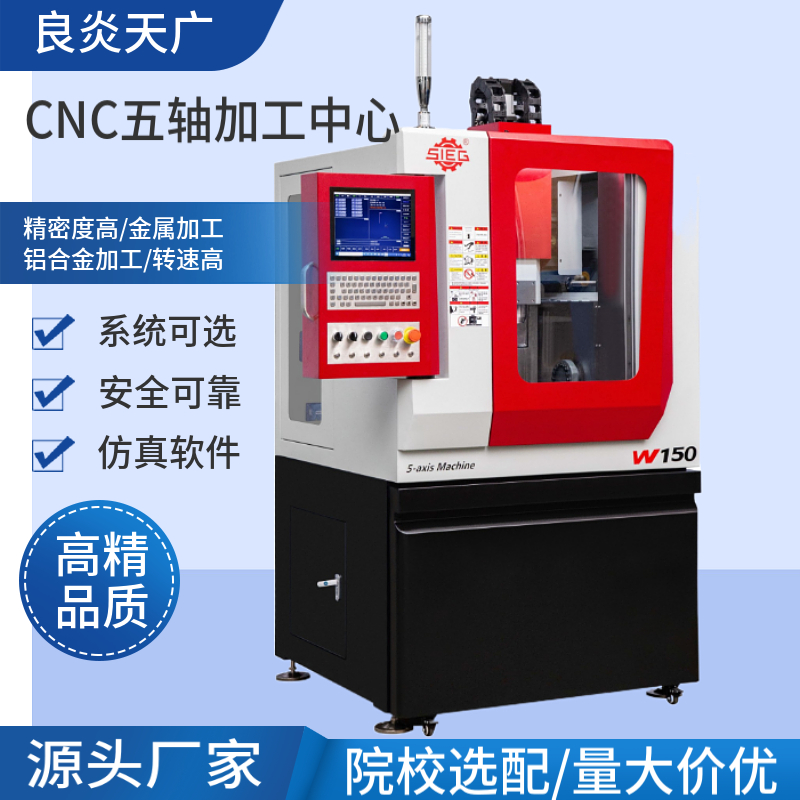

W150 5-axis CNC machine

Features
Model：W150 5-axis CNC machine
Structure：Mobile gantry，AC cradle type，five axis
Application industry： Metal processing
Processing method：Engraving and milling
Processing materials：Copper aluminum soft metal，plastic，wood unquenched metal，mold steel，stainless steel


Specifications

Class	Item	Parameter
Travel	X travel	220mm
	Y travel	350mm
	Z travel	220mm
	A travel Rotary table size	-110°～+30°
	C travel Rotary table size	360°
	Rotary table size	180mm
	Worktable load	20KG
	Work space	Cylinder with diameter of 150mm x height of 150mm
Performance	Straight cutting feed	6000mm/min
	Straight fast feed	9000mm/min
	Rotary cutting feed	6000°/min
	Rotary fast feed	9000°/min
	Positioning accuracy	≤0.01mm
	Repatability accuracy	≤0.005mm
	Rotary positioning accuracy	≤40arcsec
	Rotary repatability accuracy	≤20arcsec
	Spindle taper	ISO20
	Clamping range	ER20 1-12mm
	Spindle speed	4000r/min
	Spindle torque	1.2Nm
	Spindle power	2.2kw
	Tool change speed	<5 second
	Tool number	12
Others	Machine size	1100*1200*1900mm
	Machine weight	800kg
