Products Name:SC10 Bench Lathe
Key Feature:

• Overrunning clutch
• Hardened bed way
• High power with large cutting capacity
• Auto feeding on both X, Y axis
• Cutting all thread pitchs only adjust the gear box handles, no more need changing gears





SpecificationsOptiona:
Swing over bed    305mm
Distance between centers    700mm
Hole through spindle    38mm
Spindle taper    MT5
Spindle nose    D type
Tailstock taper    MT3
Compound travel    80mm
Cross slide travel    155mm
Range of thread  Metric version    0.25-2.5mm (14 threads pitches)
Imperial version    12 - 96 TPI (9 threads pitches)
Motor output power    1500W
Spindle speed    (Brushless motor) 100-2000rpm
Overall dimension (LxWxH)    1500x750x730mm
Packing size  (LxWxH)      1550x890x670mm
Weight  (Net/Gross)      215/255kg



The following accessories are freely chosen by the user, and then buy:

Serial No.
Item Description
Suitable for Models
S/N:10247
Steady rest
C10,SC10,M10,SM10
S/N:10248
Follow rest

C10,SC10,M10,SM10

S/N:10249

Face plate

Slot size: 16mm

C10,SC10,M10,SM10

S/N:10023A

Clamping kit for SN10207

Bolt size: 12mm

C10,SC10,M10,SM10

S/N:10036

Vice

width 100mm

U1,SU1,X2,X2L,SX2,SX2L

SX2P,X2P,X3,SX3,M6,M8

SM8,M10,SM10

S/N:10252

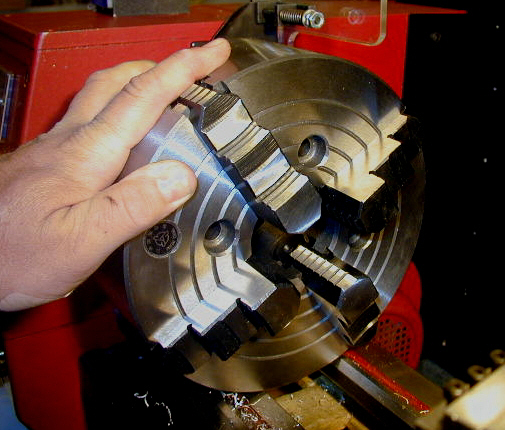

160mm 4 jaw chuck
C10,SC10,M10,SM10
S/N:10252A

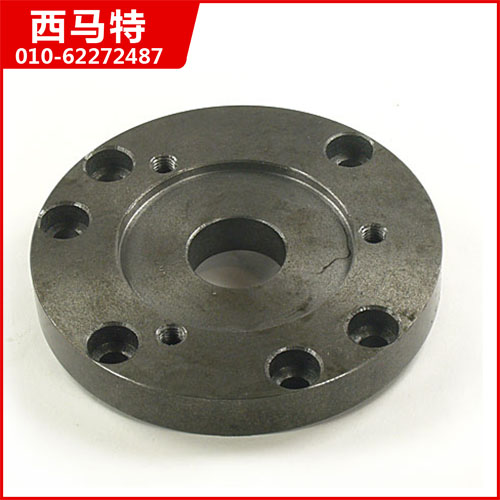

160mm 4 jaw chuck with flange

C10,SC10,M10,SM10
S/N:10209

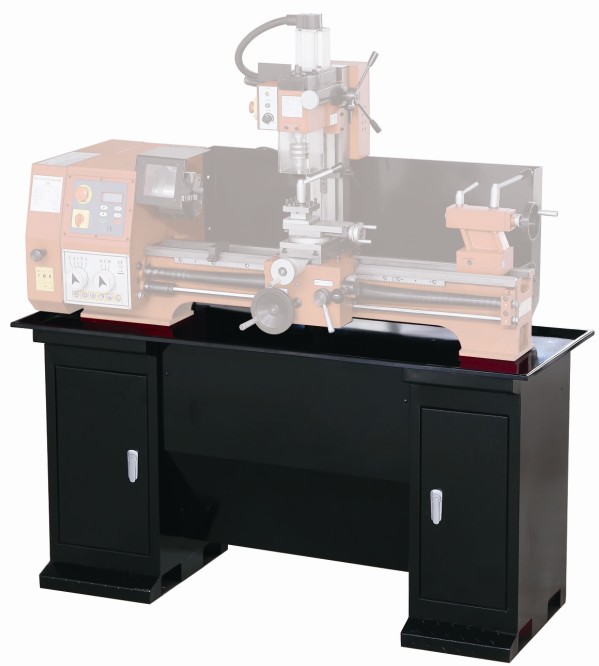

Stand

Overall dimension 1490×600×720mm

C8,SC8,M8,SM8

C10,SC10,M10,SM10

S/N:20231

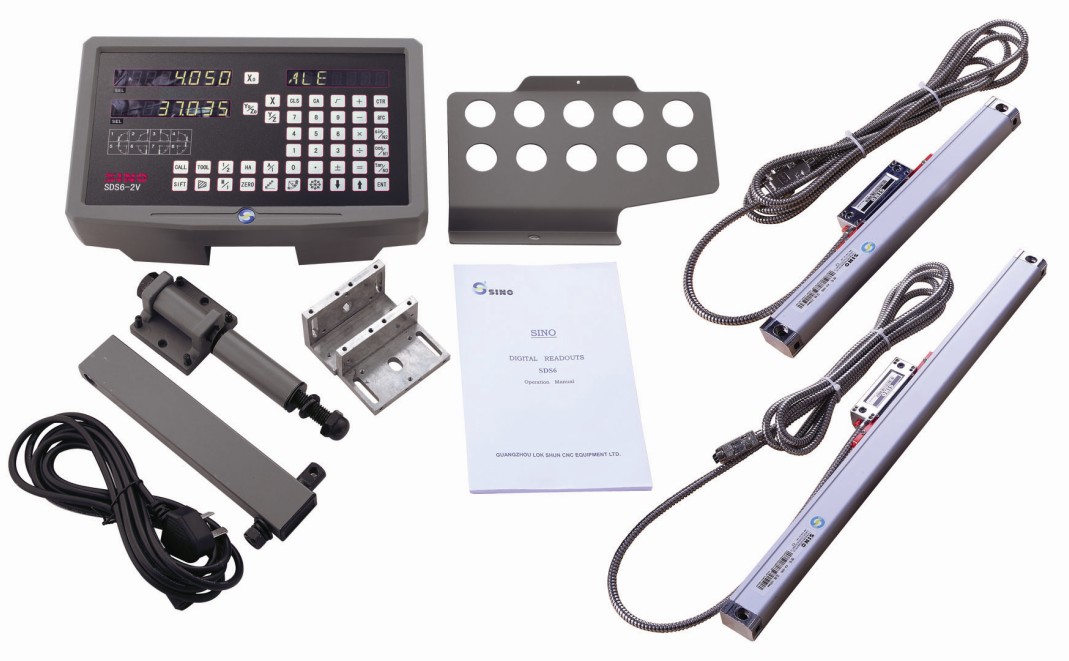

2-axis digital readout

PS: Machine originally installed with digital readout available

C8,SC8,C10,SC10
S/N:10250
Rolling center MT3

C10,SC10,M10,SM10

S/N:10251

Tailstock chuck

Dia.13mm+MT2

C10,SC10,M10,SM10
S/N:10208

Mill attachment

Holding capacity 50mm

C8,SC8,C10,SC10

C10,SC10,M10,SM10

S/N:10273

Cutter 11 piece set

16×16mm




C8,SC8,C10,SC10

C10,SC10,M10,SM10

S/N:10212

Quick change cutter rest

C8,SC8,C10,SC10

C10,SC10,M10,SM10

S/N:10212-1

Tool post

C8,SC8,C10,SC10

C10,SC10,M10,SM10

S/N:10212-2

Cutter holder

C8,SC8,C10,SC10

C10,SC10,M10,SM10

The above quote (price) excluding shipping and invoicing, + 10% for invoicing, credit card payment or credit card payment required plus 1% of the total.
