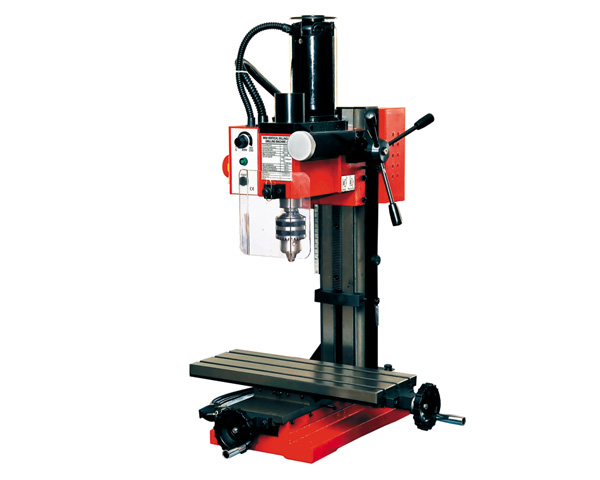

Products Name:X2P Mini Mill Drill

Key Feature:X2 mill with fixed column and large table
                              Cast iron for vibration free running
                              500W variable speed motor
                              Coarse down feed for drilling operations
                               Fine down feed control for accurate tool height setting

Specifications
Drilling capacity    13 mm
End milling capacity    16 mm
Face milling capacity   30 mm
Longitudinal axis (X)    280 mm
Cross axis (Y)     140 mm
Headstock travel (Z)    260 mm
Throat     167 mm
Spindle taper    MT3 or R8
Motor output power    350 w
Spindle speed Low range     100-1100 ±10% rpm
                             High range    100-2500 ±10% rpm
Table effective size    400x145 mm
T-slot size    8 mm
Overal dimension (LxWxH)     520x580x760 mm
Packing size (LxWxH)     540x540x730 mm
Weight (Net/Gross)     58/75 kg

Optional Accessories
以下是可选附件：

Serial No.	Item Description	Picture	Suitable for Models
S/N:10036	Quick vice100mm		U1,SU1,X2,X2L, SX2,SX2L,X2P,X3, X3L,SX3,SX3L,M6
S/N:10037	MT3 Mill chuck set(metric) Chuck dia. 4, 6, 8, 10, 12, 14, 16mm		U1,SU1,X2,X2L, SX2,SX2L,X2P,X3, X3L,SX3,SX3L,SX4,M6
S/N:10038 S/N:10039 S/N:10040 S/N:10041 S/N:10042 S/N:10043 S/N:10044 S/N:10045	2 Flute Hss end mill ￠4mm 2 Flute Hss end mill ￠6mm 2 Flute Hss end mill ￠8mm 2 Flute Hss end mill ￠10mm 2 Flute Hss end mill ￠12mm 2 Flute Hss end mill ￠14mm 2 Flute Hss end mill ￠16mm ￠4-16 mm		X1,SX1,X2,X2L, SX2,SX2L,X2P,XN2
S/N:10056	Drill bit 1-13 mm 25 pcs		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L, Z1,Z2,Z3,Z4
S/N:10057	Drill bit Tin coated 25 pcs		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L, Z1,Z2,Z3,Z4
S/N:10058	Drill bit 1-10 mm 19 pcs		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L, Z1,Z2,Z3
S/N:10059	Drill bit Tin coated 19 pcs		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L, Z1,Z2,Z3
S/N:10065 S/N:10066	4 Flute HSS end mill (metric 7 pcs) 4 Flute HSS end mill (metric 6pcs)		X1,SX1,X2,X2L,SX2, SX2L,X3,X3L,SX3,SX3L
S/N:10102 S/N:10103	4 Flute HSS end mill (imperial 6 pcs) 4 Flute HSS end mill (imperial 8 pcs)		X1,SX1,X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L
S/N:10094	Rotary table 100mm		U1,SU1,SX0,X2,X2L, SX2,SX2L,X2P,X3, X3L,SX3,SX3L,M1
S/N:10094-1	Dividing plate for S/N:10094		U1,SU1,X2,X2L, SX2,SX2L,X2P,X3, X3L,SX3,SX3L,M1
S/N:10094-2	Tailstock for S/N:10094		U1,SU1,X2,X2L, SX2,SX2L,X2P,X3, X3L,SX3,SX3L,M1
S/N:10109	Vice width 80mm		X2,X2L,SX2,SX2L,X2P, X2P,X3,X3L,SX3,SX3L
S/N:10119 S/N:10120 S/N:10121 S/N:10122 S/N:10123 S/N:10124 S/N:10125 S/N:10126	Collet MT3 ￠4mm Collet MT3 ￠6mm Collet MT3 ￠8mm Collet MT3 ￠10mm Collet MT3 ￠12mm Collet MT3 ￠14mm Collet MT3 ￠16mm Collet MT3 ￠4-16mm		X2,X2L,SX2,SX2L,X2P
S/N:10127	Stub milling machine arbor for For slitting saw hole ￠16mm		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L
S/N:10128	Boring arbor with boring cutter MT#3		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L
S/N:10129	Stub milling machine arbor for For slitting saw, hole ￠16mm		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L

底座：S/N:10274
