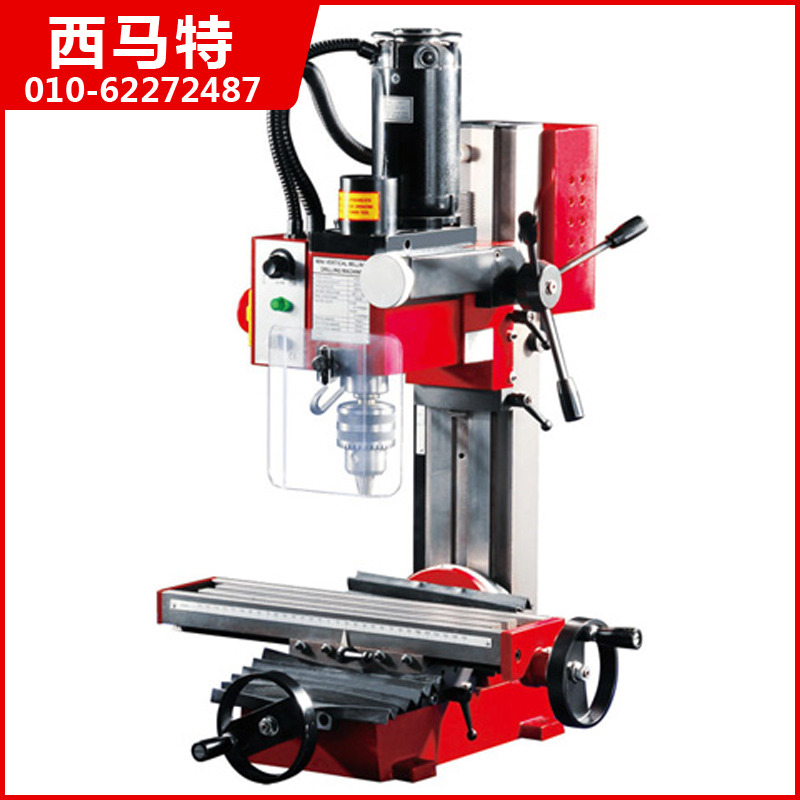

Products Name:X2L Mini Mill Drill

Key Feature:With cast iron for vibration free running

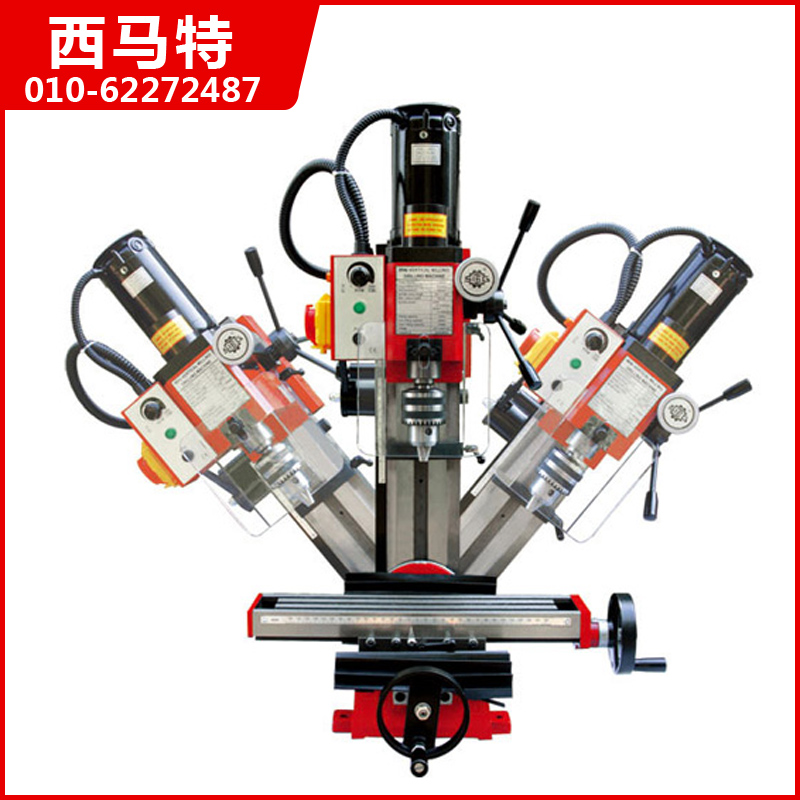

                               Milling head and column tilts to 45° Left & Right
                               Variable speed motor with a 2 speed gearbox
                               operationsFine down feed control for accurate tool height setting
                               3MT spindle fitted with a 13mm drill chuck and arbour
                               Coarse down feed for drilling

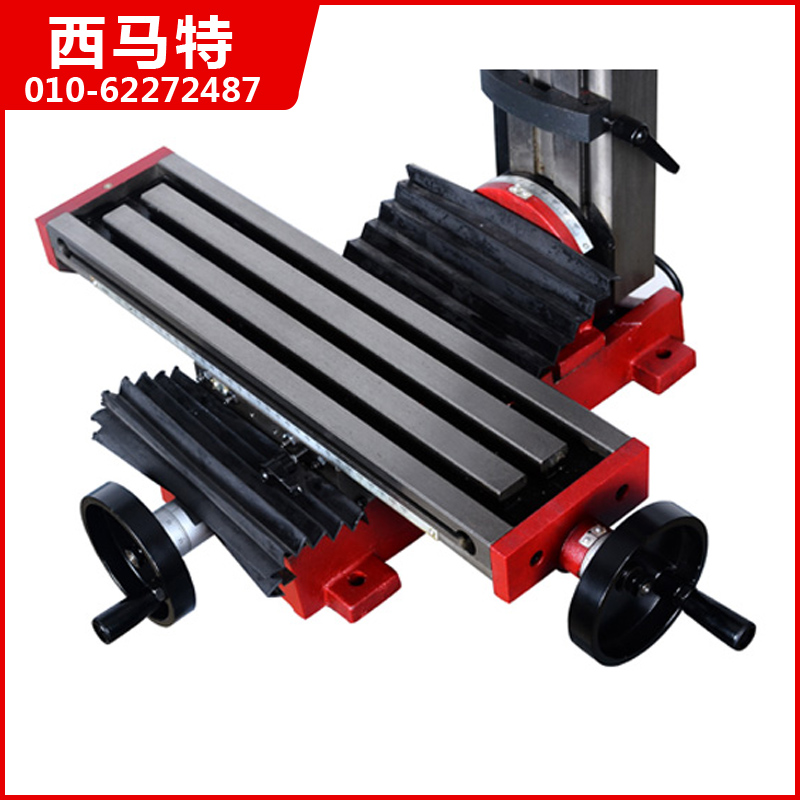

                               With long size table: 460*120 mm

Specifications
Drilling capacity     13 mm
End milling capacity    16 mm
Face milling capacity    30 mm
Longitudinal axis (X)    300 mm
Cross axis (Y)     130 mm
Headstock travel (Z)     180 mm
Throat     167 mm
Max. distance spindle to table     280 mm
Head tilt    45°L, 45°R
Spindle taper     MT3 or R8
Motor output power    350 w
Spindle speed   Low range     100-1100 ±10% rpm
                              High range     100-2500 ±10% rpm
Table effective size     460x120 mm
T-slot size     12 mm
Overal dimension (LxWxH)    620x550x700 mm
Packing size (LxWxH)    640x600x730 mm
Weight (Net/Gross)     60/78 kg

Optional Accessories以下是可选附件：

Serial No.	Item Description	Picture	Suitable for Models
S/N:10036	Quick vice100mm		U1,SU1,X2,X2L, SX2,SX2L,X2P,X3, X3L,SX3,SX3L,M6
S/N:10037	MT3 Mill chuck set(metric) Chuck dia. 4, 6, 8, 10, 12, 14, 16mm		U1,SU1,X2,X2L, SX2,SX2L,X2P,X3, X3L,SX3,SX3L,SX4,M6
S/N:10038 S/N:10039 S/N:10040 S/N:10041 S/N:10042 S/N:10043 S/N:10044 S/N:10045	2 Flute Hss end mill ￠4mm 2 Flute Hss end mill ￠6mm 2 Flute Hss end mill ￠8mm 2 Flute Hss end mill ￠10mm 2 Flute Hss end mill ￠12mm 2 Flute Hss end mill ￠14mm 2 Flute Hss end mill ￠16mm ￠4-16 mm		X1,SX1,X2,X2L, SX2,SX2L,X2P,XN2
S/N:10056	Drill bit 1-13 mm 25 pcs		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L, Z1,Z2,Z3,Z4
S/N:10057	Drill bit Tin coated 25 pcs		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L, Z1,Z2,Z3,Z4
S/N:10058	Drill bit 1-10 mm 19 pcs		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L, Z1,Z2,Z3
S/N:10059	Drill bit Tin coated 19 pcs		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L, Z1,Z2,Z3
S/N:10065 S/N:10066	4 Flute HSS end mill (metric 7 pcs) 4 Flute HSS end mill (metric 6pcs)		X1,SX1,X2,X2L,SX2, SX2L,X3,X3L,SX3,SX3L
S/N:10102 S/N:10103	4 Flute HSS end mill (imperial 6 pcs) 4 Flute HSS end mill (imperial 8 pcs)		X1,SX1,X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L
S/N:10094	Rotary table 100mm		U1,SU1,SX0,X2,X2L, SX2,SX2L,X2P,X3, X3L,SX3,SX3L,M1
S/N:10094-1	Dividing plate for S/N:10094		U1,SU1,X2,X2L, SX2,SX2L,X2P,X3, X3L,SX3,SX3L,M1
S/N:10094-2	Tailstock for S/N:10094		U1,SU1,X2,X2L, SX2,SX2L,X2P,X3, X3L,SX3,SX3L,M1
S/N:10109	Vice width 80mm		X2,X2L,SX2,SX2L,X2P, X2P,X3,X3L,SX3,SX3L
S/N:10119 S/N:10120 S/N:10121 S/N:10122 S/N:10123 S/N:10124 S/N:10125 S/N:10126	Collet MT3 ￠4mm Collet MT3 ￠6mm Collet MT3 ￠8mm Collet MT3 ￠10mm Collet MT3 ￠12mm Collet MT3 ￠14mm Collet MT3 ￠16mm Collet MT3 ￠4-16mm		X2,X2L,SX2,SX2L,X2P
S/N:10127	Stub milling machine arbor for For slitting saw hole ￠16mm		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L
S/N:10128	Boring arbor with boring cutter MT#3		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L
S/N:10129	Stub milling machine arbor for For slitting saw, hole ￠16mm		X2,X2L,SX2,SX2L, X2P,X3,X3L,SX3,SX3L

底座：S/N:10255A (410X490X905MM)
