Product Details

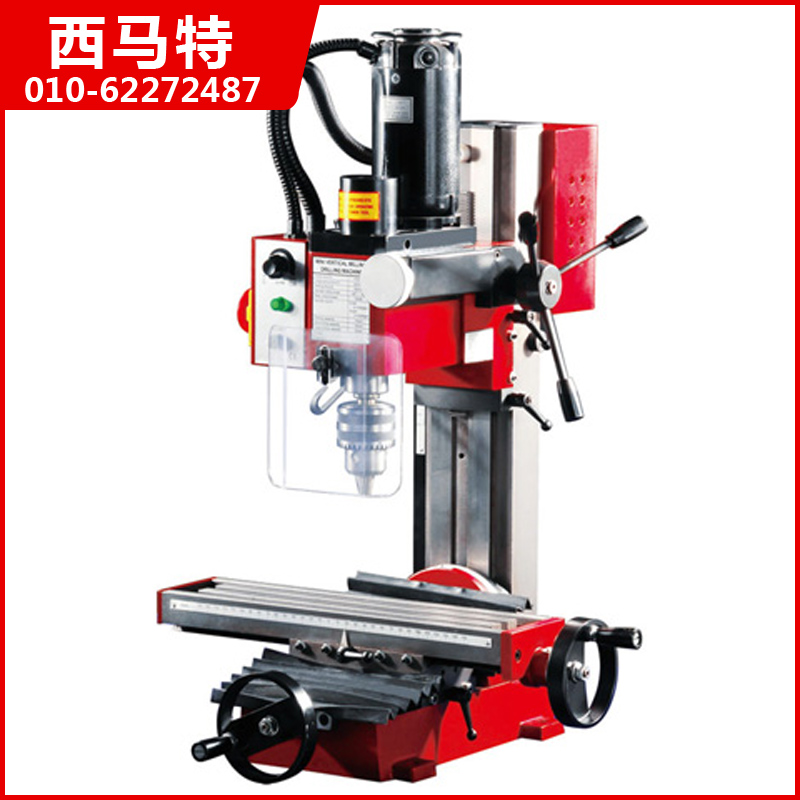

Products Name:X2 Mini Mill Drill



Key Feature:With cast iron for vibration free running
                             Milling head and column tilts to 45° Left & Right
                             Variable speed motor with a 2 speed gearbox
                             Coarse down feed for drilling
                             operationsFine down feed control for accurate tool height setting
                             3MT spindle fitted with a 13mm drill chuck and arbour

Specifications
Drilling capacity    13 mm
End milling capacity    16 mm
Face milling capacity    30 mm
Longitudinal axis (X)    220 mm
Cross axis (Y)    100 mm
Headstock travel (Z)    180 mm
Throat    167 mm
Max. distance spindle to table    280 mm
Head tilt   45°L, 45°R
Spindle taper    MT3 or R8
Motor output power    350 w
Spindle speed   Low range    100-1100 ±10% rpm
                          High range    100-2500 ±10% rpm
Table effective size    390x92 mm
T-slot size    12 mm
Overal dimension (LxWxH)    520x510x760 mm
Package dimension (LxWxH)    540x480x700 mm
Weight (Net/Gross)    50/68 kg

Optional Accessories

Serial No.
Item Description
Suitable for Models
S/N:10036
Quick vice100mm


U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M6

S/N:10037
MT3 Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,SX4,M6

S/N:10038

S/N:10039

S/N:10040

S/N:10041

S/N:10042

S/N:10043

S/N:10044

S/N:10045

2 Flute Hss end mill ¢4mm

2 Flute Hss end mill ¢6mm

2 Flute Hss end mill ¢8mm

2 Flute Hss end mill ¢10mm

2 Flute Hss end mill ¢12mm

2 Flute Hss end mill ¢14mm

2 Flute Hss end mill ¢16mm

¢4-16 mm

X1,SX1,X2,X2L,

SX2,SX2L,X2P,XN2

S/N:10056
Drill bit 1-13 mm 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10057
Drill bit Tin coated 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10058
Drill bit 1-10 mm 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10059
Drill bit Tin coated 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10065

S/N:10066



4 Flute HSS end mill (metric 7 pcs)

4 Flute HSS end mill (metric 6pcs)

X1,SX1,X2,X2L,SX2,

SX2L,X3,X3L,SX3,SX3L

S/N:10102

S/N:10103

4 Flute HSS end mill (imperial 6 pcs)

4 Flute HSS end mill (imperial 8 pcs)

X1,SX1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10094
Rotary table 100mm

U1,SU1,SX0,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-1
Dividing plate for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-2
Tailstock for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10109
Vice width 80mm

X2,X2L,SX2,SX2L,X2P,

X2P,X3,X3L,SX3,SX3L

S/N:10119

S/N:10120

S/N:10121

S/N:10122

S/N:10123

S/N:10124

S/N:10125

S/N:10126

Collet MT3 ¢4mm

Collet MT3 ¢6mm

Collet MT3 ¢8mm

Collet MT3 ¢10mm

Collet MT3 ¢12mm

Collet MT3 ¢14mm

Collet MT3 ¢16mm

Collet MT3 ¢4-16mm

X2,X2L,SX2,SX2L,X2P
S/N:10127
Stub milling machine arbor for
For slitting saw hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10128
Boring arbor with boring cutter
MT#3

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10129
Stub milling machine arbor for For slitting saw, hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

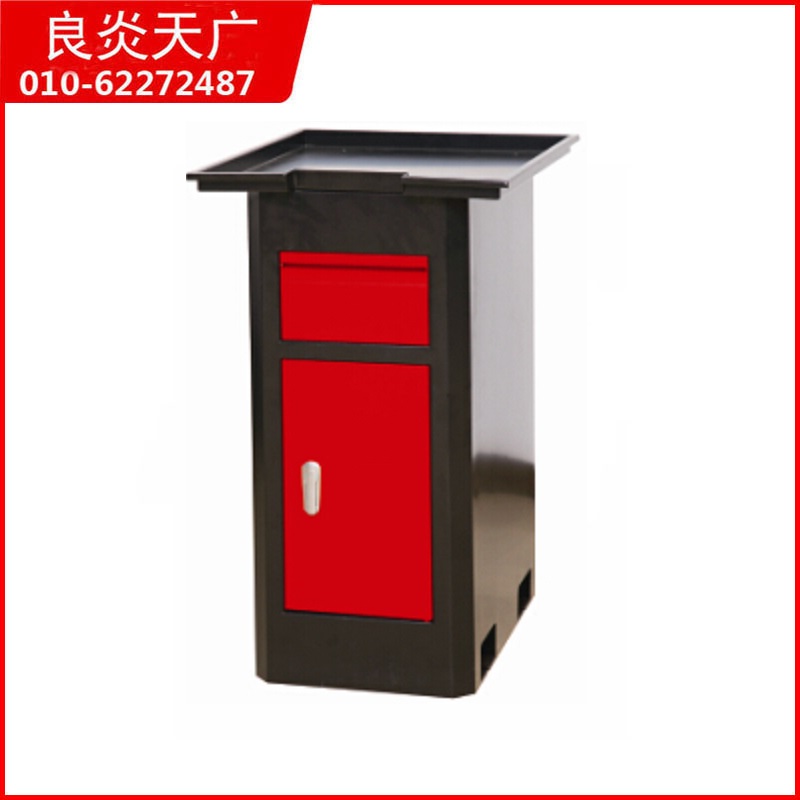

底座:S/N:10255B (410X490X905MM)
