Product Details

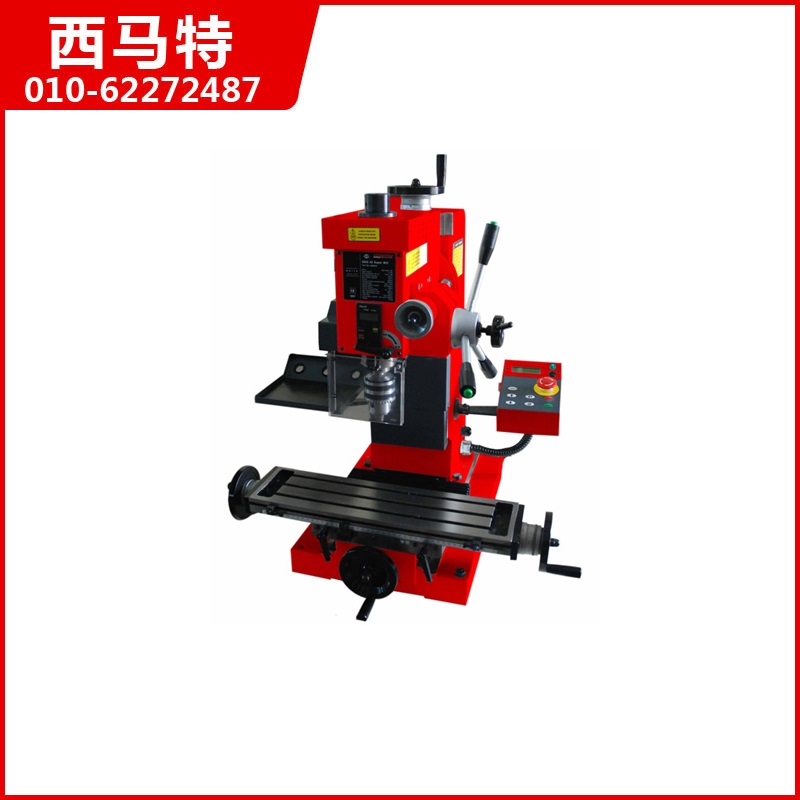

Products Name:XN2 Bench Mill Drill




Key Feature:Advanced 500W brushless motor
                              Variable speed range 50-2,500rpm

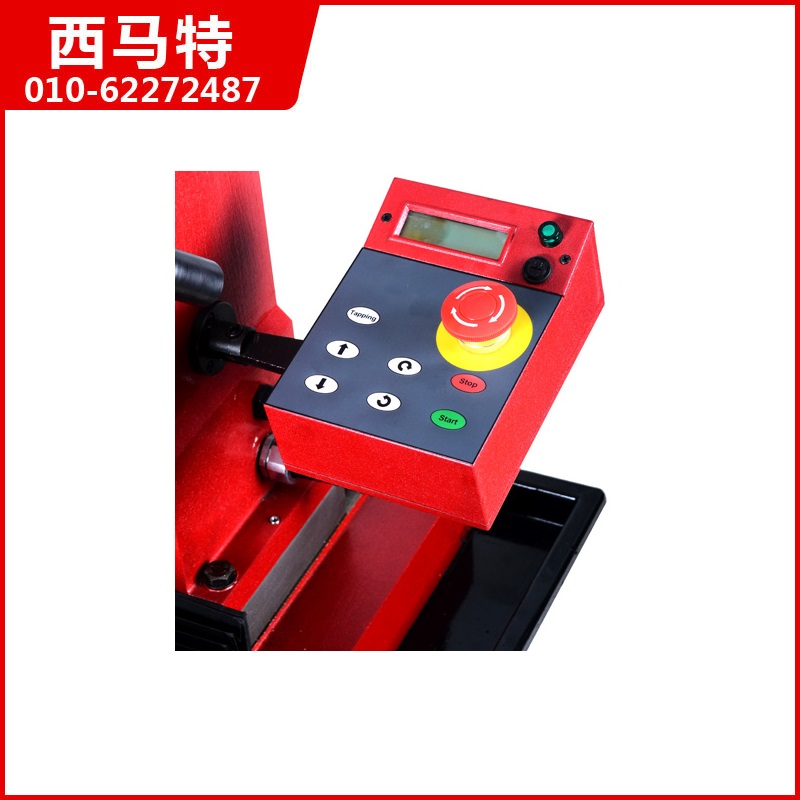

                              Digital display of spindle speed and travel
                              Head tilt up to 45° either way
                              Left hand spindle rotation and tapping function
                              Solid cast iron design for vibration free operation

Specifications
Drilling capacity      16 mm
Max. tapping capacity      20 mm
Face mill capacity      30 mm
Longitudinal axis (X)      230 mm
Cross aixs (Y)      150 mm
Headstock travel (Z)      220 mm
Max distance spindle to table      300 mm
Spindle taper      MT2
Spindle speed (variable speed)      50-2500 ±10% rpm
Table effective size      500×130mm
T-slot size      8 mm
Head tilt      45°L, 45°R
Motor output power      500 W
Overall dimension (LxWxH)      630x830x810 mm
Packing size (LxWxH)      720x650x870 mm
Weight (Net/Gross)      127/140 kg

Optional Accessories
Serial No.
Item Description
Suitable for Models
S/N:10035
Quick vice 50mm

C1,X0,SX0,X1,

SX1,XN2,M1,SM4

S/N:10038

S/N:10039

S/N:10040

S/N:10041

S/N:10067

S/N:10068

S/N:10069

2 Flute Hss end mill ¢4mm

2 Flute Hss end mill ¢6mm

2 Flute Hss end mill ¢8mm

2 Flute Hss end mill ¢10mm

2 Flute Hss end mill ¢3mm

2 Flute Hss end mill ¢5mm

2 Flute Hss end mill ¢3-10mm set

X1,SX1,X2,X2L,

SX2,SX2L,X2P,XN2

S/N:10070
Mill chuck set(6 PCS)
Chuck dia. 3, 4, 5, 6, 8, 10mm
X1,SX1,XN2,M1,SM4
S/N:10071
Indexable carbide end mill
MT#2 Dia.16mm
X1,SX1,XN2,M1,SM4
S/N:10104
Clamping kit 12 pcs
Bolt size 6mm
X1,SX1,XN2,SM4
S/N:10105
Clamping kit 24 pcs
Bolt size 6mm
SX0,X1,SX1,XN2
S/N:10108
Vice width 55mm
Vice width 50mm
S/N:10116
Stub milling machine arbor
hole ¢13mm
X1,SX1,XN2,M1
S/N:10117
Boring arbor with boring cutter
MT#2
X1,SX1,XN2,M1,SM4
S/N:10118
Stub milling machine arbor
hole ¢13mm
X1,SX1,XN2,M1

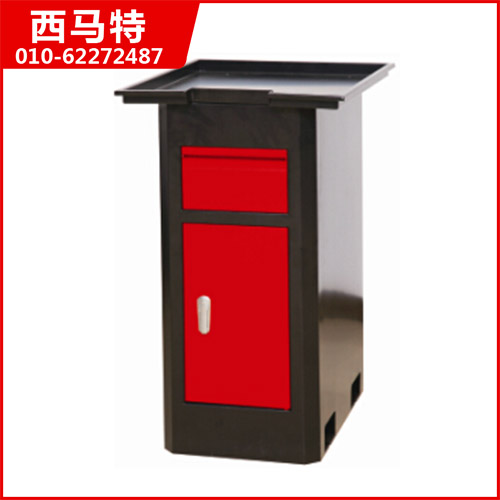

S/N:10240A (530X610X850MM)
