Product Details

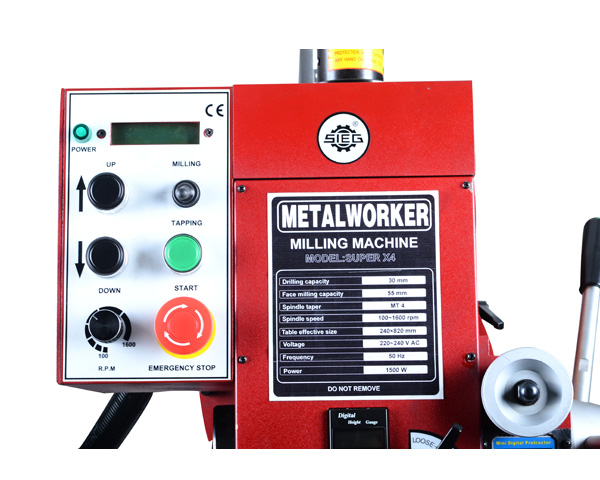

Products Name:SX4-Digi Bench Mill Drill





Key Feature:1,500W brushless DC motor
                              Power height adjustment of Z axis
                              Tapping function controls on handles
                              Tilting headstock with digital angle readout
                              Optional Y axis powerfeed and floor stand

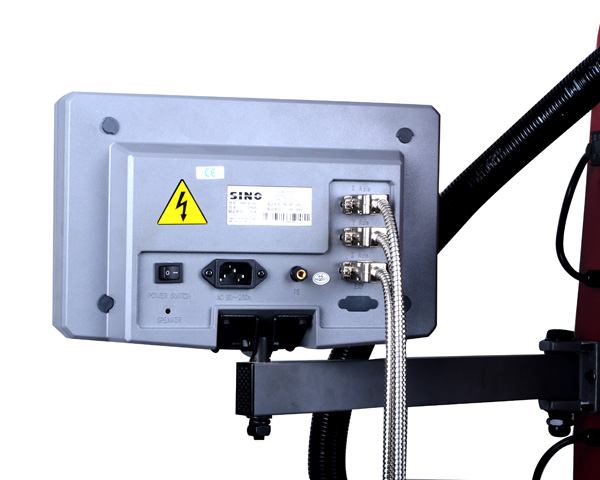

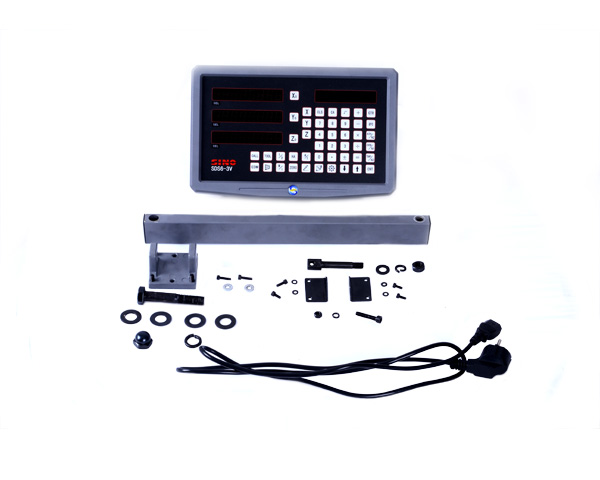

                              Spindle speed and spindle depth digital readouts

Specifications
Drilling capacity                                   30 mm
Max.tapping capacity                          16 mm
End mill capacity                                 40 mm
Face mill capacity                               55mm
Longitudinal axis (X)                           410 mm
Cross axis (Y)                                     245 mm
Headstock travel (Z)                            335 mm
Throat                                                 290 mm
Max distance spindle to table             400 mm
Spindle taper                                      MT4 or R8
Spindle speed                                    100-1600 ±10% rpm
Table effective size                            240×820mm
T-slot size                                          14mm
Head tilt                                             45°L, 45°R
Motor output power                           1500 W
Overal dimension (LxWxH)               1060x835x1080 mm
Packing size (LxWxH)                       1160x920x1110 mm
Weight(Net/Gross)                            310/340 kg

Optional Accessories
Serial No.
Item Description
Suitable for Models
S/N:10037
MT3 Mill chuck set(metric)
Chuck dia.4, 6, 8, 10, 12, 14, 16mm

U1,SU1,X2,X2L,SX2,

SX2L,X2P,X3,X3L,

SX3,SX3L,SX4,M6

S/N:10048
Quick vice 125mm

SX4
S/N:10054
MT4 to MT3 adaptor
(with draw bar)

SX4
S/N:10059
Drill bit Tin coated 19 pcs


X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,

SX3L,SX4,Z1,Z2,Z3,Z4

S/N:10113
Indexable carbide end mill Ø50mm
U1,SU1,X3,X3L,SX3,SX3L,SX4
S/N:10141
Auto feeder
SX3L,X3L,X3,SX3
S/N:10143
Rotary table 150mm
SX4
S/N:10143-1
Dividing Plate for S/N:10143
SX4
S/N:10143-2
Tailstock for S/N:10143
SX4
S/N:10101
¢125mm 3-jaw chuck for S/N:10143

SX4
S/N:10025
4-jaw chuck ¢125mm for S/N:10143

SX4
S/N:10244 (550X835X845MM)
