Product Details

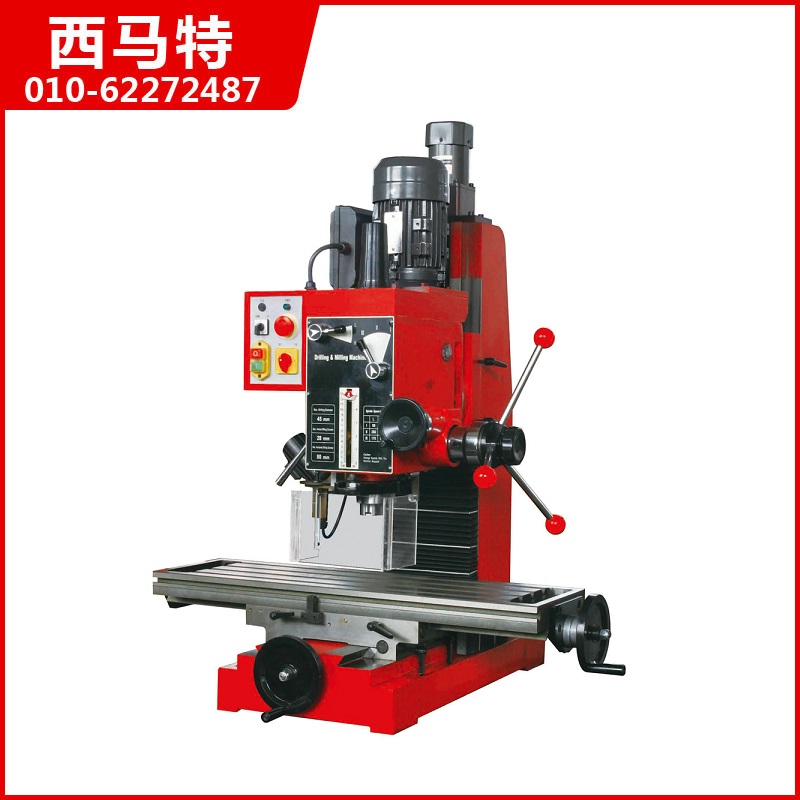

Products Name:X4 Bench Mill Drill


Key Feature: New mill drill in 2013
                                Second choice for X4 series
                                Solidly made and with cast iron base
                                Coarse for drilling, fine for milling

Specifications
Drilling capacity       45 mm
Max.tapping capacity      12 mm
End mill capacity      40 mm
Face mill capacity      55 mm
Longitudinal axis (X)      450 mm
Cross axis (Y)      245 mm
Headstock travel (Z)      265 mm
Throat      260 mm
Max distance spindle to table      350 mm
Spindle taper      MT4 or R8
Spindle speed      95-1600 ±10% rpm
Table effective size      240×820mm
T-slot size      14mm
Head tilt      45°L, 45°R
Motor output power      735 W
Overal dimension (LxWxH)      1040x920x1950 mm
Packing size (LxWxH)      1060x900x1270 mm
Weight(Net/Gross)      280/310 kg

技术参数:

最大钻孔能力                                    45毫米
最大攻丝能力                                    16毫米
最大立铣刀的能力                             40毫米
最大面铣刀能力                                55毫米
纵向轴线(X)                                 450毫米
十字轴(Y)                                     245毫米
主轴箱行程(Z)                              265毫米
喉(立柱表面到主轴中心)              260毫米
最大距离主轴表                                350毫米
主轴锥度                                           MT4或R8
主轴转速                                           95-1600±10%转
工作台有效尺寸                                240×820毫米
T型槽尺寸                                        14毫米
歪头(左右倾斜)               45°L,45°R
电机输出功率                                   735W
全部测试尺寸(长宽高)                 1040x920x1950毫米
包装尺寸(长宽高)                        1060x900x1270毫米
重量(净重/毛重)                           280/310公斤

以下附件需要另购:

Optional Accessories
Serial No.
Item Description
Suitable for Models
S/N:10037
MT3 Mill chuck set(metric)
Chuck dia.4, 6, 8, 10, 12, 14, 16mm

U1,SU1,X2,X2L,SX2,

SX2L,X2P,X3,X3L,

SX3,SX3L,SX4,M6

S/N:10048
Quick vice 125mm

SX4
S/N:10054
MT4 to MT3 adaptor
(with draw bar)

SX4
S/N:10059
Drill bit Tin coated 19 pcs


X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,

SX3L,SX4,Z1,Z2,Z3,Z4

S/N:10113
Indexable carbide end mill Ø50mm
U1,SU1,X3,X3L,SX3,SX3L,SX4
S/N:10141
Auto feeder
SX3L,X3L,X3,SX3
S/N:10143
Rotary table 150mm
SX4
S/N:10143-1
Dividing Plate for S/N:10143
SX4
S/N:10143-2
Tailstock for S/N:10143
SX4
S/N:10101
¢125mm 3-jaw chuck for S/N:10143

SX4
S/N:10025
4-jaw chuck ¢125mm for S/N:10143

SX4
S/N:10244 (550X835X845MM)

Review

以上报价(优惠价)不含运费和发票,如需开发票+10%,信用卡付款或刷卡需在货款总

额加1%
