Product Details

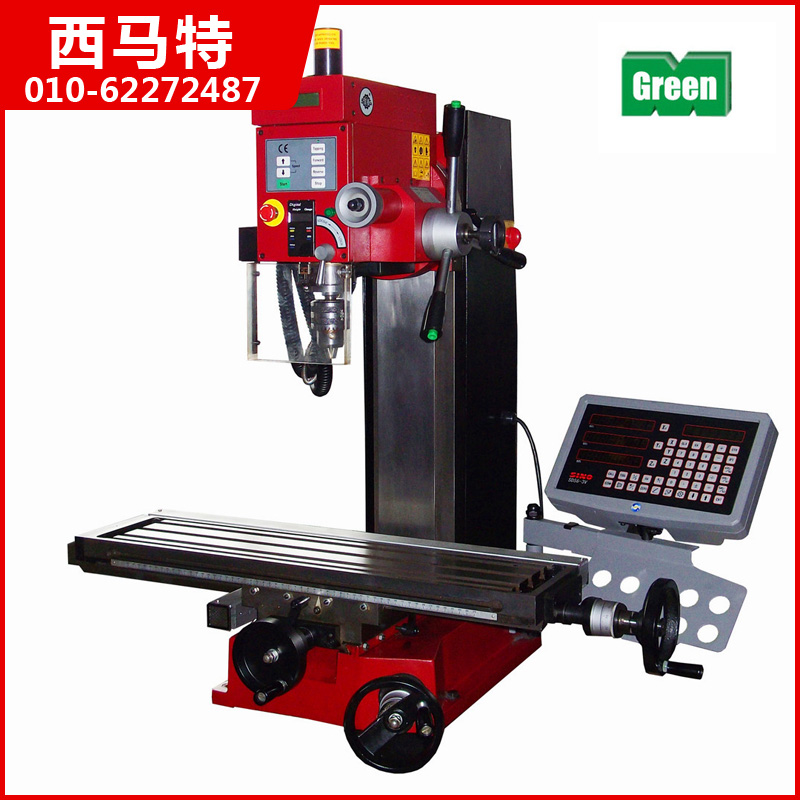

Products Name:SX3-Digi Small Mill Drill数显精密钻铣床SX3-Digi


Key Feature:  Well made mill/drill for small workshop use制造精良的磨/小型车间使用钻铣
                               Digital downfeed and spindle speed indicators数字降速和主轴转速指示
                               Dual downfeed controls双向向下控制
                               Coarse for drilling, fine for milling
                               Cabinet stand, clamp set available as extras柜架,夹具可作为附件
                               Head tilts up to 90° for angled and horizontal milling头部倾斜90°,用于倾斜和水平铣削

Specifications
Drilling capacity                               25 mm
Max. tapping capacity                      12 mm
End mill capacity                              16 mm
Face mill capacity                            50 mm
Longitudinal axis (X)                        400 mm
Cross axis (Y)                                  145 mm
Headstock travel (Z)                         300 mm
Throat                                              230 mm
Max distance spindle to table          380 mm
Spindle taper                                   MT3 or R8
Spindle speed                                 100-1750 ±10% rpm
Table effective sive                         550x160 mm
T-slot size                                       12 mm
Head tilt                                           45°L, 45°R
Motor output power                         1000 W
Overall dimension (LxWxH)            760x720x930 mm
Weight (Net/Gross)                         165/198 kg
Packing size (LxWxH)                     800x800x1060 mm

Optional Accessories以下是可选附件:

Serial No.
Item Description
Suitable for Models
S/N:10036
Quick vice100mm

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M6

S/N:10037
MT3 Mill chuck set(metric)
Chuck dia. 4, 6, 8, 10, 12, 14, 16mm

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,SX4,M6



S/N:10045



2 Flute Hss end mil ¢4-16 mm

Chuck dia.4, 6, 8, 10, 12, 14, 16mm

X1,SX1,X2,X2L,

SX2,SX2L,X2P,XN2,X3

S/N:10046
Indexable carbide end mill MT3 Ø30mm

U1,SU1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,M6

S/N:10047
Clamping kit 58pcs

U1,SU1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,M6

S/N:10056
Drill bit 1-13 mm 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10057
Drill bit Tin coated 25 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3,Z4

S/N:10058
Drill bit 1-10 mm 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10059
Drill bit Tin coated 19 pcs

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L,

Z1,Z2,Z3

S/N:10065

S/N:10066



4 Flute HSS end mill (metric 7 pcs)

4 Flute HSS end mill (metric 6pcs)

X1,SX1,X2,X2L,SX2,

SX2L,X3,X3L,SX3,SX3L

S/N:10102

S/N:10103

4 Flute HSS end mill (imperial 6 pcs)

4 Flute HSS end mill (imperial 8 pcs)

X1,SX1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10094
Rotary table 100mm

U1,SU1,SX0,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-1
Dividing plate for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10094-2
Tailstock for S/N:10094

U1,SU1,X2,X2L,

SX2,SX2L,X2P,X3,

X3L,SX3,SX3L,M1

S/N:10109
Vice width 80mm

X2,X2L,SX2,SX2L,X2P,

X2P,X3,X3L,SX3,SX3L

S/N:10113
Indexable carbide end mill Ø50mm
X2,X2L,SX2,SX2L,X2P
S/N:10114A
One piece stand
X3,X3L,SX3,SX3L
S/N:10126
Collet MT3 ¢4-16mm

U1,SU1,X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10127
Stub milling machine arbor for hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10128
Boring arbor with boring cutter

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10129
Stub milling machine arbor for hole ¢16mm

X2,X2L,SX2,SX2L,

X2P,X3,X3L,SX3,SX3L

S/N:10135
Work table with angle
X3,X3L,SX3,SX3L
S/N:10141
Auto feeder
SX3L,X3L,X3,SX3
S/N:10142
Vice width 100mm
SX3,X3L,X3,SX3L
S/N:10150
Work table for horizontal milling
SX3,X3,X3L,SX3L

S/N:10240B(460X730X880MM)
